SCR105B-100
ObsoleteSignal Transformer
FIXED IND 10UH 4.4A 60 MOHM SMD
SCR105B-100
ObsoleteSignal Transformer
FIXED IND 10UH 4.4A 60 MOHM SMD
Description
General part information

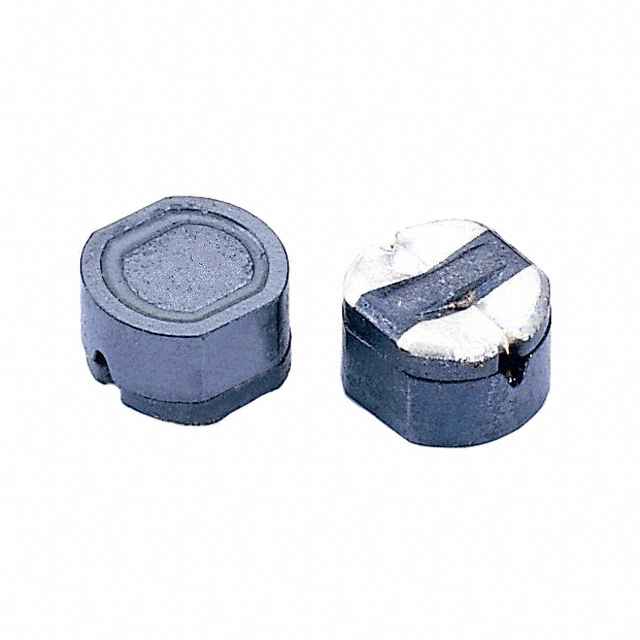

SCR105B-100
10 µH Shielded Inductor 4.4 A 60mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SCR105B-100 |
|---|---|
| Current - Saturation (Isat) | 2.06 A |
| Current Rating | 4.4 A |
| DC Resistance (DCR) (Max) | 60 mOhm |
| Height - Seated (Max) | 0.217 in |
| Inductance | 10 µH |
| Inductance Frequency - Test | 7.96 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.413 in |
| Size / Dimension Width | 0.374 in |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
