AVC40I-390J
ActiveAllied Components International

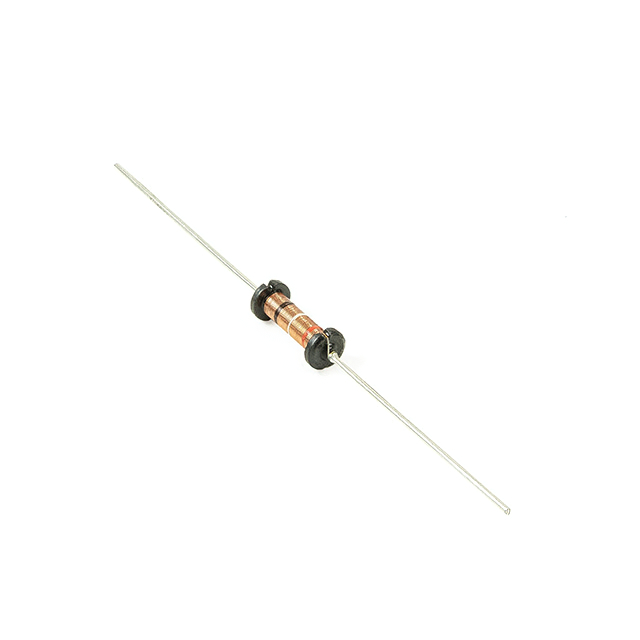

39.0UH 5% AXIAL VARNISHED CHOKE
AVC40I-390J
ActiveAllied Components International
39.0UH 5% AXIAL VARNISHED CHOKE
Description
General part information
AVC40I-390J
39 µH Unshielded Inductor 600 mA 650mOhm Max Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | AVC40I-390J |
|---|---|
| Current Rating | 600 mA |
| DC Resistance (DCR) (Max) | 650 mOhm |
| Frequency - Self Resonant | 20 MHz |
| Inductance | 39 µH |
| Inductance Frequency - Test | 2.52 MHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Q | 70 |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.29 in |
| Size / Dimension Length | 0.875 in |
| Tolerance | 5 % |
