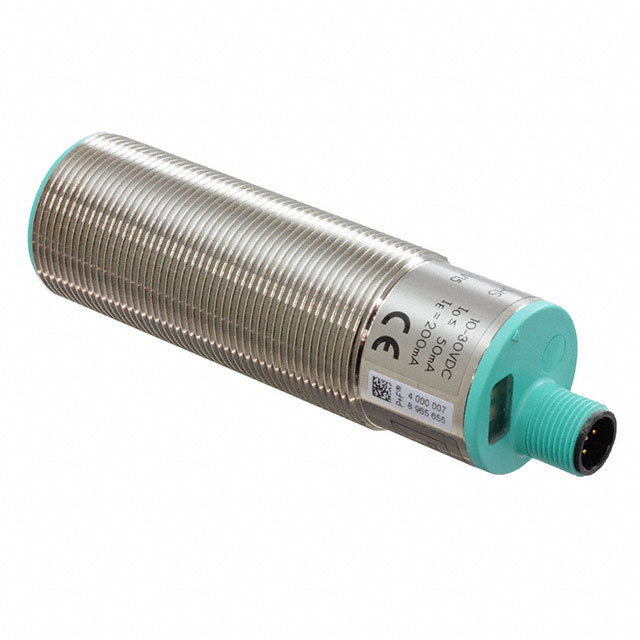

UB2000-30GM-E5-V15
ActiveULTRASONIC PROXIMITY SENSOR, M30, 2 M, PNP, 175 KHZ, 20 TO 30 VDC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UB2000-30GM-E5-V15 |
|---|---|
| Indicator [custom] | LED |
| Ingress Protection | IP65 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Output Type | 5-Wire, PNP-NC/NO |
| Package / Case | Cylinder, Threaded - M30 |
| Sensing Distance [Max] | 78.74 " |
| Sensing Distance [Max] | 2000 mm |
| Sensing Distance [Min] | 3.15 " |
| Sensing Distance [Min] | 80 mm |
| Sensor Type | Ultrasonic |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
UB2000 Series
The UB2000-30GM-E5-V15 is an Ultrasonic Sensor that is characterized by their reliability and outstanding versatility. Ultrasonic sensor can be used to solve even the most complex tasks involving object detection or level measurement with millimeter precision, because their measuring method works reliably under almost all conditions. The device is extremely robust, making them suitable for even the toughest conditions. The sensor surface cleans itself through vibration and that is not the only reason why the sensor is insensitive to dirt. The physical principle-the propagation of sound-works, with a few exceptions, in practically any environment. The measuring method employed by the sensor has been viewed as an excessively complex technology and only used as a "last resort" as a solution for particularly difficult applications. The sensor has proven their reliability and endurance in virtually all industrial sectors.
