Description
General part information

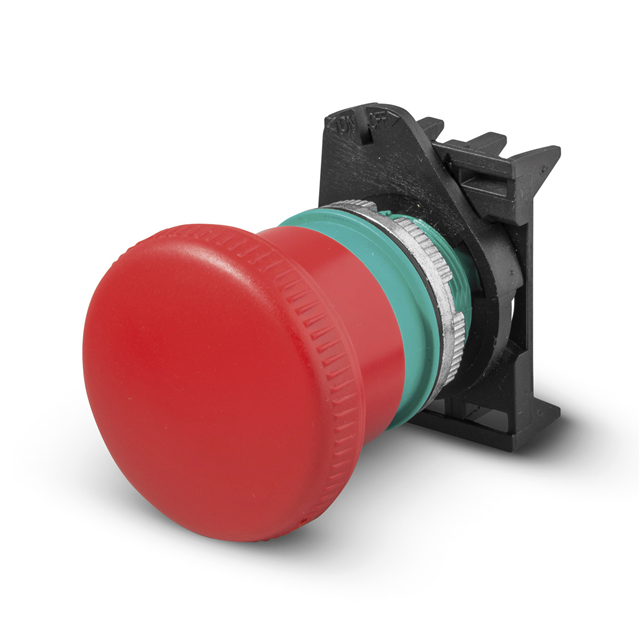

PPFN1P4N-1NC
EMERGENCY STOP PUSH BUTTON, PUSH
Technical Specifications
Parameters and characteristics for this part
| Specification | PPFN1P4N-1NC |
|---|---|
| Circuit | SPST-NC |
| Current Rating | 10 A |
| Ingress Protection Description | High Temp Water Jets, Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP69K |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Panel Cutout Diameter | 22 mm |
| Panel Cutout Shape | Circular |
| Reset Operation | Pull |
| Switch Function | On-Off |
| Termination Style | Spring Terminal |
| Voltage Rating - AC | 600 VAC |
