PR05KR115 YL400

Active

ALPHA WIRE

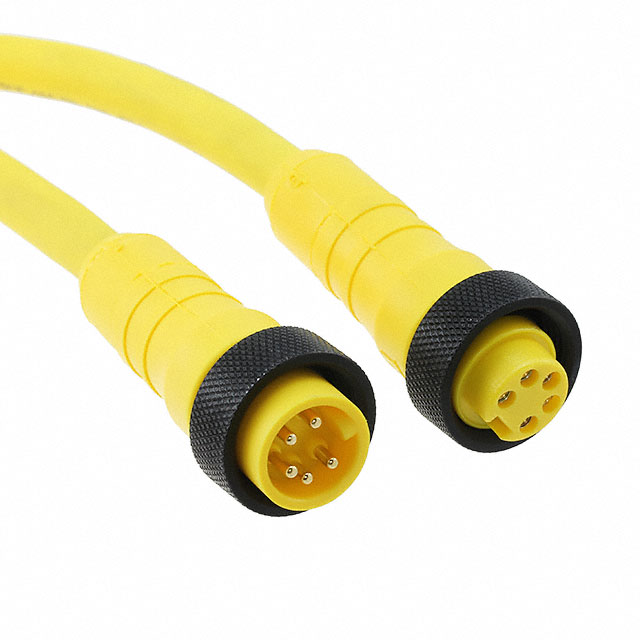

CABLE ASSEMBLY CIRCULAR 15M 16AWG CIRCULAR TO CIRCULAR 5 POS M-F EACH

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE ASSEMBLY CIRCULAR 15M 16AWG CIRCULAR TO CIRCULAR 5 POS M-F EACH

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PR05KR115 YL400	PR05KR115 Series

1st Connector Gender	Male Pins	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
1st Connector Number of Positions	5	5
1st Connector Number of Positions Loaded	All	All
1st Connector Orientation [custom]	Keyed	Keyed
1st Connector Shell Size - Insert	0.875 in	0.875 in
1st Connector Type	Receptacle	Receptacle
2nd Connector Gender	Female Sockets	Female Sockets
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Connector Number of Positions	5	5
2nd Connector Number of Positions Loaded	All	All
2nd Connector Shell Size - Insert	0.875 "	0.875 "
2nd Connector Type	Plug	Plug
Assembly Configuration	Standard	Standard
Cable Material	Thermoplastic Elastomer (TPE)	Thermoplastic Elastomer (TPE)
Cable Type	Round	Round
Color	Yellow	Yellow
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Length [x]	15 m	15 m
Length [x]	49.2 ft	49.2 ft
Usage	Industrial Environments	Industrial Environments

CIRC CBL 5POS RCPT TO PLUG 65.6'

Part	2nd Connector Gender	1st Connector Number of Positions Loaded	1st Connector Orientation [custom]	2nd Connector Number of Positions	Usage	2nd Connector Number of Positions Loaded	2nd Connector Shell Size - Insert	1st Connector Gender	1st Connector Type	2nd Connector Mounting Type	Ingress Protection	Cable Material	2nd Connector Type	Color	Cable Type	Assembly Configuration	1st Connector Mounting Type	1st Connector Shell Size - Insert	1st Connector Number of Positions	Length [x]	Length [x]
ALPHA WIRE PR05KR115 YL401	Female Sockets	All	Keyed	5	Industrial Environments	All	0.875 "	Male Pins	Receptacle	Free Hanging (In-Line)	IP67 - Dust Tight, Waterproof	Thermoplastic Elastomer (TPE)	Plug	Yellow	Round	Standard	Free Hanging (In-Line)	0.875 in	5
ALPHA WIRE PR05KR115 YL400	Female Sockets	All	Keyed	5	Industrial Environments	All	0.875 "	Male Pins	Receptacle	Free Hanging (In-Line)	IP67 - Dust Tight, Waterproof	Thermoplastic Elastomer (TPE)	Plug	Yellow	Round	Standard	Free Hanging (In-Line)	0.875 in	5	15 m	49.2 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 242.48
		2	$ 232.78
Digikey	Bulk	1	$ 123.35

General part information

Circular Cable Assembly 49.2' (15.00m)
