SCRH6D28-151
ActiveSignal Transformer
FIXED IND 150UH 420MA 615MOHM SM
SCRH6D28-151
ActiveSignal Transformer
FIXED IND 150UH 420MA 615MOHM SM
Description
General part information
SCRH6D28-151

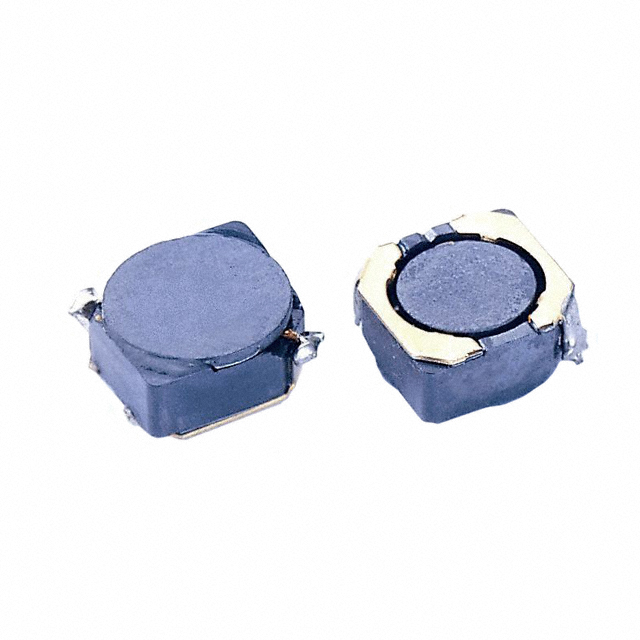

150 µH Shielded Inductor 420 mA 615mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SCRH6D28-151 |
|---|---|
| Current - Saturation (Isat) | 0.42 mA |
| Current Rating | 0.42 A |
| DC Resistance (DCR) (Max) | 615 mOhm |
| Height - Seated (Max) | 0.118 in |
| Inductance | 150 µH |
| Inductance Frequency - Test | 10 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.283 in |
| Size / Dimension Width | 0.283 in |
| Tolerance | 30 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
