FMCA1560-36
ActiveFairview Microwave
CBL ASSY BMAJACK-BMAJACK 36
FMCA1560-36
ActiveFairview Microwave
CBL ASSY BMAJACK-BMAJACK 36
Description
General part information
FMCA1560-36

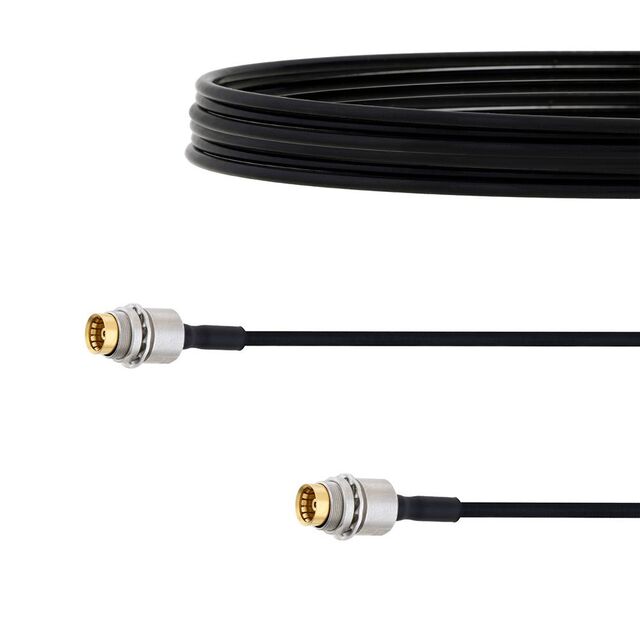

Cable Assembly Coaxial BMA to BMA 0.086" Semi-Rigid Cable 36.00" (914.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA1560-36 |
|---|---|
| 1st Connector | BMA Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | BMA Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Diameter | 0.086 " |
| Cable Impedance | 50 Ohms |
| Cable Type | Rigid Cable, Semi, Semi-Rigid Cable |
| Cable Type Size | 0.086, 0.086 " |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 18 GHz |
| Length | 36 in |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | BMA |
