Description
General part information

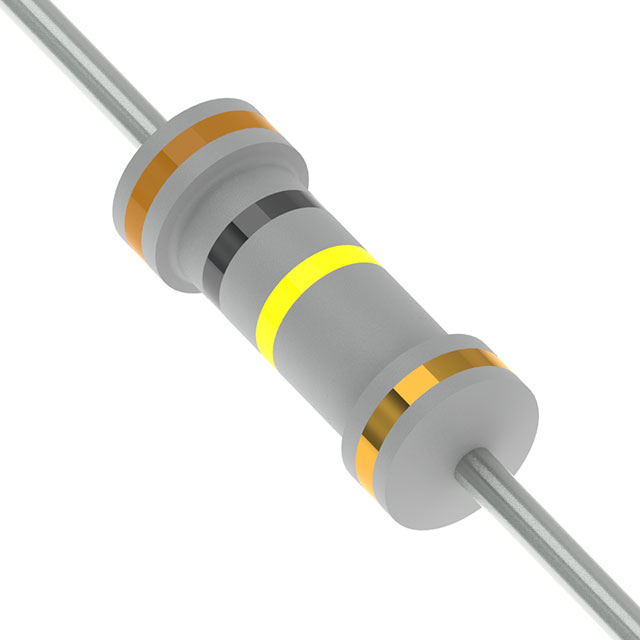

RSF100JR-52-300K
300 kOhms ±5% 1W Through Hole Resistor Axial Flame Proof, Safety Metal Oxide Film
Technical Specifications
Parameters and characteristics for this part
| Specification | RSF100JR-52-300K |
|---|---|
| Composition | Metal Oxide Film |
| Features | Safety, Flame Proof |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 235 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 1 W |
| Resistance | 300 kOhm |
| Size / Dimension Diameter | 0.177 in |
| Size / Dimension Length | 0.453 in |
| Temperature Coefficient | 300 ppm/°C |
| Tolerance | 5 % |
