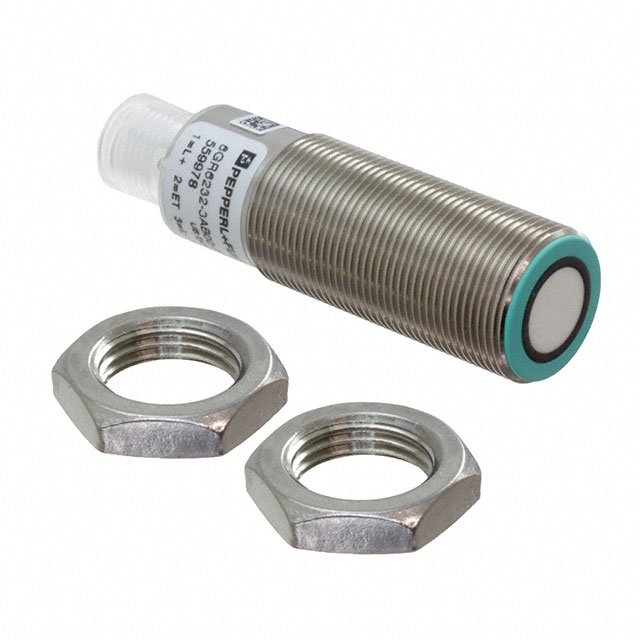

6GR6232-3AB00-PF
ActivePEPPERL+FUCHS
ULTRASONIC SEN 20-250MM PNP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6GR6232-3AB00-PF
ActivePEPPERL+FUCHS
ULTRASONIC SEN 20-250MM PNP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 6GR6232-3AB00-PF |
|---|---|
| Indicator [custom] | LED |
| Ingress Protection | IP67 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Output Type | PNP-NO, 4-Wire |
| Package / Case | Cylinder, Threaded - M18 |
| Response Frequency | 10 Hz |
| Sensing Distance [Max] | 250 mm |
| Sensing Distance [Max] | 9.843 " |
| Sensing Distance [Min] | 20 mm |
| Sensing Distance [Min] | 0.787 " |
| Sensor Type | Ultrasonic |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 20 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 302.53 | |
| 5 | $ 255.22 | |||
| 10 | $ 237.22 | |||
| 25 | $ 215.36 | |||
Description
General part information
6GR6232 Series
ULTRASONIC SEN 20-250MM PNP
