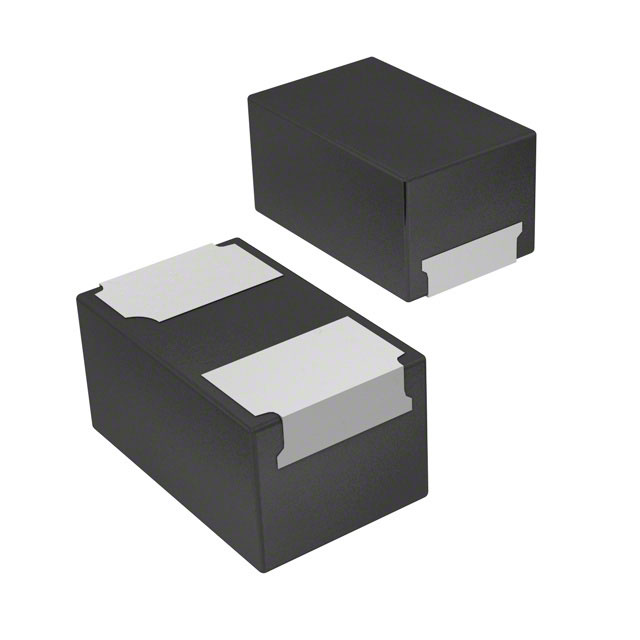

SBR0240LPWQ-7B - SBR0240LPWQ-7B

SBR0240LPWQ-7B

Active
Diodes Inc

0.2A SURFACE MOUNT SUPER BARRIER RECTIFIER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetRecommended Soldering Techniques+1
SBR0240LPWQ-7B - SBR0240LPWQ-7B

SBR0240LPWQ-7B

Active
Diodes Inc

0.2A SURFACE MOUNT SUPER BARRIER RECTIFIER

Deep-Dive with AI

DocumentsDatasheetRecommended Soldering Techniques+1

Technical Specifications

Parameters and characteristics for this part

SpecificationSBR0240LPWQ-7B
Capacitance @ Vr, F8 pF
Current - Average Rectified (Io)200 mA
Current - Reverse Leakage @ Vr10 µA
GradeAutomotive
Mounting TypeSurface Mount
Operating Temperature - Junction [Max]150 °C
Operating Temperature - Junction [Min]-65 C
Package / Case0402 (1006 Metric)
QualificationAEC-Q101
Reverse Recovery Time (trr)3.8 ns
SpeedAny Speed
Speed200 mA
Supplier Device PackageX1-DFN1006-2
TechnologySuper Barrier
Voltage - DC Reverse (Vr) (Max) [Max]40 V
Voltage - Forward (Vf) (Max) @ If590 mV

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.38
10$ 0.26
100$ 0.13
500$ 0.11
1000$ 0.08
2000$ 0.07
5000$ 0.06
Digi-Reel® 1$ 0.38
10$ 0.26
100$ 0.13
500$ 0.11
1000$ 0.08
2000$ 0.07
5000$ 0.06
Tape & Reel (TR) 10000$ 0.06
30000$ 0.05
50000$ 0.05

Description

General part information

SBR0240LPWQ Series

0.2A Surface Mount Super Barrier Rectifier
