1050766-1

Active

TE Connectivity AMP Connectors

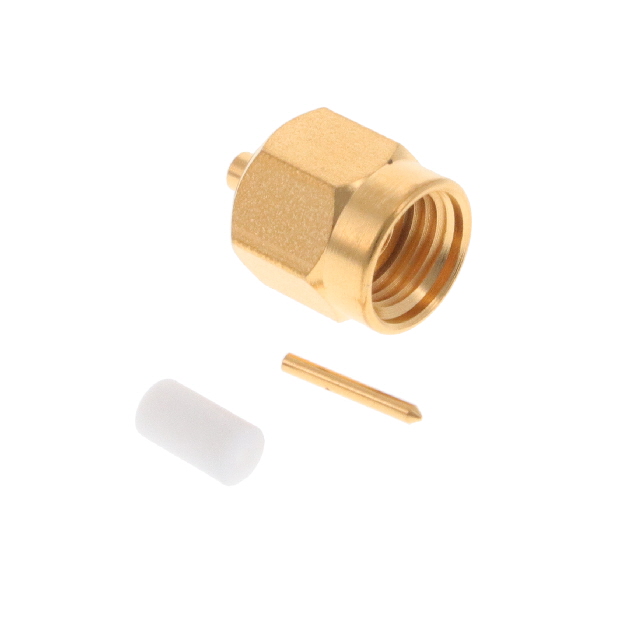

CONN SMA PLUG STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN SMA PLUG STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	1050766-1

Body Finish	Gold
Body Material	Stainless Steel
Cable Group	Semi Rigid
Cable Group	0.047 in
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	170 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

CONN SMA PLUG STR 50 OHM SOLDER

Part	Connector Style	Body Material	Mounting Type	Center Contact Plating	Frequency - Max [Max]	Connector Type	Impedance	Housing Color	Dielectric Material	Contact Termination	Shield Termination	Number of Ports	Voltage Rating	Cable Group	Cable Group	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Mating Cycles	Center Contact Material
TE Connectivity AMP Connectors 1050766-1	SMA	Stainless Steel	Free Hanging (In-Line)	Gold	18 GHz	Male Pin, Plug	50 Ohms	Gold	Polytetrafluoroethylene (PTFE)	Solder	Solder	1	170 V	Semi Rigid	0.047 in	-65 ░C	165 °C	Gold	500	Beryllium Copper

General part information

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
