Description
General part information

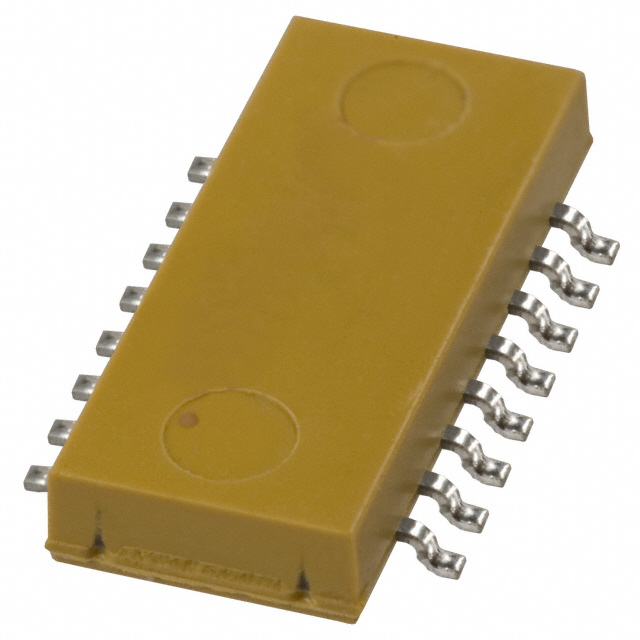

GL2L5MS450D-C
4.5 ns ±0.100nS Inductor Delay Line 100 mA 50 Ohms 16-SOIC (0.239", 6.06mm Width)
Technical Specifications
Parameters and characteristics for this part
| Specification | GL2L5MS450D-C |
|---|---|
| Current | 100 mA |
| DC Resistance (DCR) (Max) | 1 Ohm |
| Delay Time | 4.5 ns |
| Impedance | 50 Ohm |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Package Length | 0.239 in |
| Package Name | 16-SOIC |
| Package Width | 6.06 mm |
| Tolerance | 0.1 nS |
