Description
General part information

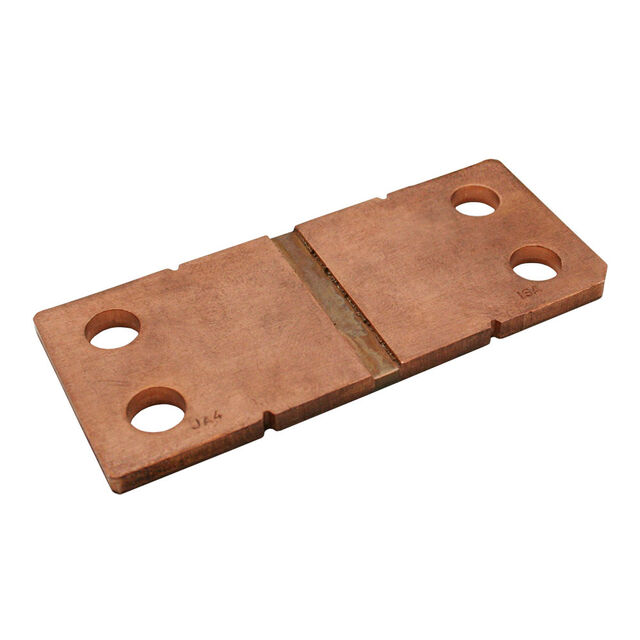

BAX-M-L020-01-5.0
20 µOhms ±5% 40W Shunt, Battery Specialized Resistor ±50ppm/°C Shunt Fixture, 64mm Pitch
Technical Specifications
Parameters and characteristics for this part
| Specification | BAX-M-L020-01-5.0 |
|---|---|
| Mounting Size | 64 mm |
| Mounting Type | Pitch, Shunt Fixture |
| Operating Temperature (Max) | 170 °C |
| Operating Temperature (Min) | -40 °C |
| Power (Watts) | 40 W |
| Resistance | 20 µOhms |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 5 % |
| Type | Battery, Shunt |
