1057343-1
ActiveTE Connectivity AMP Connectors

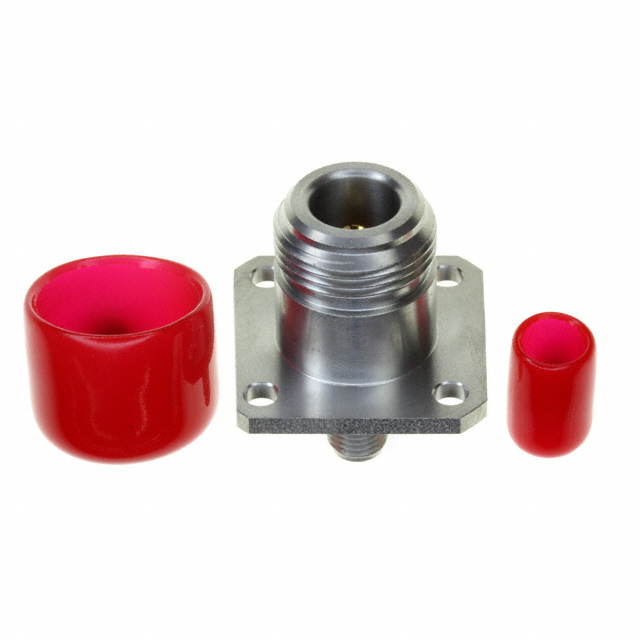

CONN ADAPT SMA JACK TO N JACK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1057343-1
ActiveTE Connectivity AMP Connectors
CONN ADAPT SMA JACK TO N JACK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1057343-1 |
|---|---|
| Adapter Series | N to OSM |
| Adapter Type | Jack to Jack |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | Female Socket, SMA Jack |
| Convert To (Adapter End) | Female Socket, N Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Mounting Feature | Flange |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
1057343 Series
CONN ADAPT SMA JACK TO N JACK
| Part | Style | Body Material | Center Contact Material | Center Gender | Mounting Feature | Convert From (Adapter End) | Conversion Type | Adapter Type | Dielectric Material | Adapter Series | Convert To (Adapter End) | Center Contact Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1057343-1 | Straight | Stainless Steel | Beryllium Copper | Female to Female | Flange | Female Socket, SMA Jack | Between Series | Jack to Jack | Polytetrafluoroethylene (PTFE) | N to OSM | Female Socket, N Jack | Gold |
Description
General part information
1057343 Series
Adapter Coaxial Connector SMA Jack, Female Socket To N Jack, Female Socket
