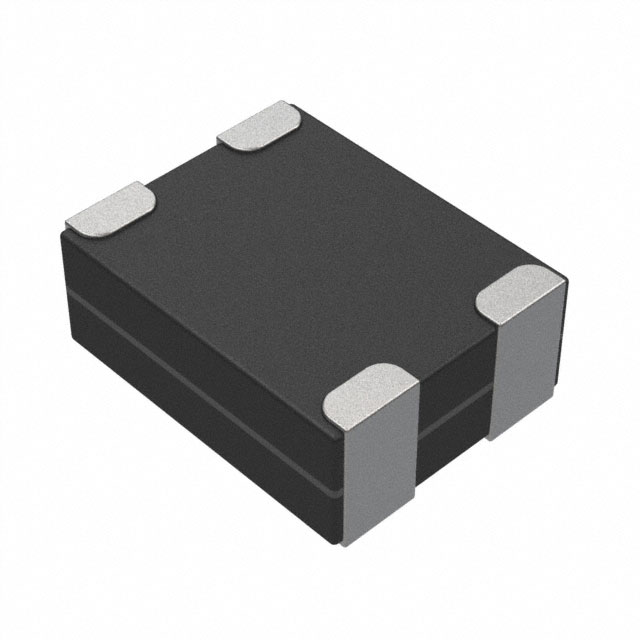

LCF121002C900TG
ActiveLITTELFUSE
CMF 1210 2LINES 90OHM/ TR ROHS COMPLIANT: YES
LCF121002C900TG
ActiveLITTELFUSE
CMF 1210 2LINES 90OHM/ TR ROHS COMPLIANT: YES
Description
General part information
LCF121002C900TG
2 Line Common Mode Choke Surface Mount 90 Ohms @ 100 MHz 150mA DCR 4Ohm
Technical Specifications
Parameters and characteristics for this part
| Specification | LCF121002C900TG |
|---|---|
| Current Rating (Max) | 150 mA |
| DC Resistance (DCR) (Max) | 4 Ohm |
| Filter Type | Signal Line |
| Height (Max) | 0.026 in |
| Impedance | 90 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 4 Leads |
| Package Name | 0504 (1210 Metric) |
| Size / Dimension Length | 0.05 in |
| Size / Dimension Width | 0.039 in |
