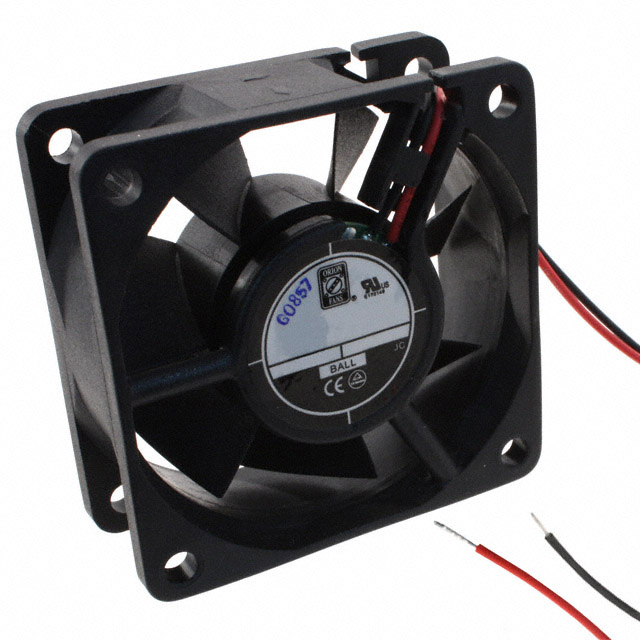

OD6025-12MBIP55
ActiveOrion Fans
FAN AXIAL 60X25MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
OD6025-12MBIP55
ActiveOrion Fans
FAN AXIAL 60X25MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | OD6025-12MBIP55 |
|---|---|
| Air Flow | 17 CFM |
| Air Flow | 0.476 m³/min |
| Approval Agency | TUV, CE, cURus, UR |
| Bearing Type | Ball |
| Current Rating (Amps) | 120 mA |
| Fan Type | Tubeaxial |
| Features | Auto Restart |
| Ingress Protection | IP55 - Dust Protected, Water Resistant |
| Lifetime @ Temp. | 60000 Hrs |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Noise | 25 dB(A) |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 1.5 W |
| RPM | 3150 RPM |
| Size / Dimension [x] | 60 mm |
| Size / Dimension [y] | 60 mm |
| Termination | 2 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.8 VDC |
| Voltage Range [Min] | 8 VDC |
| Weight | 63.96 g |
| Weight | 0.141 lb |
| Width [y] | 25 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 520 | $ 10.94 | |
Description
General part information
OD6025-12MBIP55
Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 17.0 CFM (0.476m³/min) 2 Wire Leads
