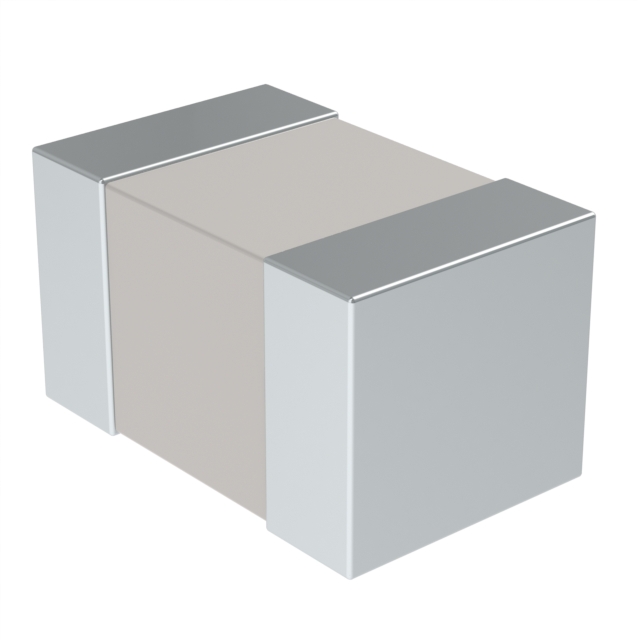

0805Y1K00330JCT

Active

Knowles Syfer

CAP CER 33PF 1KV C0G/NP0 0805

Deep-Dive with AI

Search across all available documentation for this part.

0805Y1K00330JCT

Active

Knowles Syfer

CAP CER 33PF 1KV C0G/NP0 0805

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	0805Y1K00330JCT	0805Y Series

Applications	Boardflex Sensitive	Boardflex Sensitive, High Reliability, Automotive, RF, High Frequency, Microwave, Bypass, Decoupling
Capacitance	33 pF	0.001 - 100000 pF
Features	Soft Termination	Soft Termination, High Temperature, High Q, Low Loss, Low ESL (X2Y)
Mounting Type	Surface Mount, MLCC	Surface Mount, MLCC
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	0805	0805
Ratings	-	AEC-Q200
Size / Dimension [x]	2 mm	2 mm
Size / Dimension [x]	0.079 in	0.079 in
Size / Dimension [y]	0.049 in	0.049 in
Size / Dimension [y]	1.25 mm	1.25 mm
Temperature Coefficient	NP0 (1B), C0G	X7R, NP0, C0G, NP0 (1B)
Thickness (Max) [Max]	0.051 in	0.045 - 0.051 in
Thickness (Max) [Max]	1.3 mm	1.15 - 1.3 mm
Tolerance	5 %	0.05 - 20 %
Voltage - Rated	1 kV	1 kV
Voltage - Rated	1000 V	10 - 1000 V
Voltage - Rated	-	16 V

0805Y Series

CAP CER 2700PF 250V X7R 0805

...

Part	Temperature Coefficient	Features	Voltage - Rated	Capacitance	Thickness (Max) [Max]	Thickness (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Applications	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Tolerance	Mounting Type	Voltage - Rated [custom]
Knowles Syfer 0805Y2500272KXT	X7R	Soft Termination	250 V	2700 pF	0.051 in	1.3 mm	-55 °C	125 °C	0805	Boardflex Sensitive	2 mm	0.079 in	0.049 in	1.25 mm	10 %	MLCC, Surface Mount
Knowles Syfer 0805Y2000822MXT	X7R	Soft Termination	200 V		0.051 in	1.3 mm	-55 °C	125 °C	0805	Boardflex Sensitive	2 mm	0.079 in	0.049 in	1.25 mm	20 %	MLCC, Surface Mount
Knowles Syfer 0805Y2000331FFT	C0G, NP0	High Temperature, Soft Termination	200 V	330 pF	0.051 in	1.3 mm	-55 °C	125 °C	0805	Boardflex Sensitive, High Reliability	2 mm	0.079 in	0.049 in	1.25 mm	1 %	MLCC, Surface Mount
Knowles Syfer 0805Y5000270GFT	C0G, NP0	High Temperature, Soft Termination	500 V	27 pF	0.051 in	1.3 mm	-55 °C	125 °C	0805	Boardflex Sensitive, High Reliability	2 mm	0.079 in	0.049 in	1.25 mm	2 %	MLCC, Surface Mount
Knowles Syfer 0805Y1000821FCT	C0G, NP0 (1B)	Soft Termination	100 V	820 pF	0.051 in	1.3 mm	-55 °C	125 °C	0805	Boardflex Sensitive	2 mm	0.079 in	0.049 in	1.25 mm	1 %	MLCC, Surface Mount
Knowles Syfer 0805Y5000331MDT	X7R	High Temperature, Soft Termination	500 V	330 pF	0.051 in	1.3 mm	-55 °C	125 °C	0805	Boardflex Sensitive, High Reliability	2 mm	0.079 in	0.049 in	1.25 mm	20 %	MLCC, Surface Mount
Knowles Syfer 0805Y2500152JDT	X7R	High Temperature, Soft Termination	250 V	1500 pF	0.051 in	1.3 mm	-55 °C	125 °C	0805	Boardflex Sensitive, High Reliability	2 mm	0.079 in	0.049 in	1.25 mm	5 %	MLCC, Surface Mount
Knowles Syfer 0805Y0160182FFT	C0G, NP0	High Temperature, Soft Termination		1800 pF	0.051 in	1.3 mm	-55 °C	125 °C	0805	Boardflex Sensitive, High Reliability	2 mm	0.079 in	0.049 in	1.25 mm	1 %	MLCC, Surface Mount	16 V
Knowles Syfer 0805Y0630152FFT	C0G, NP0	High Temperature, Soft Termination		1500 pF	0.051 in	1.3 mm	-55 °C	125 °C	0805	Boardflex Sensitive, High Reliability	2 mm	0.079 in	0.049 in	1.25 mm	1 %	MLCC, Surface Mount
Knowles Syfer 0805Y6303P90DCT	C0G, NP0 (1B)	Soft Termination	630 V	3.9 pF	0.051 in	1.3 mm	-55 °C	125 °C	0805	Boardflex Sensitive	2 mm	0.079 in	0.049 in	1.25 mm	0.5 pF	MLCC, Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	6000	$ 0.18

Description

General part information

0805Y Series

33 pF ±5% 1000V (1kV) Ceramic Capacitor C0G, NP0 (1B) 0805 (2012 Metric)
