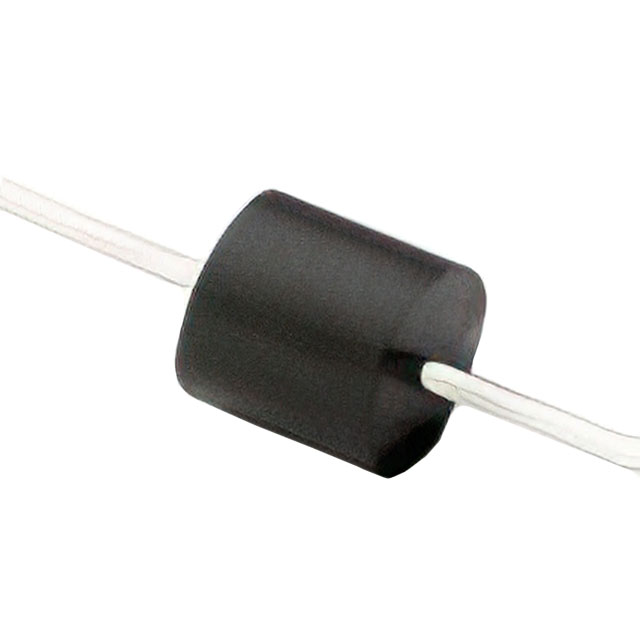

M1.5KE350A

Active

MDE Semiconductor Inc

TVS DIODE UP 300VRWM 482VC

Deep-Dive with AI

Search across all available documentation for this part.

M1.5KE350A

Active

MDE Semiconductor Inc

TVS DIODE UP 300VRWM 482VC

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 5.16
		200	$ 2.95

Description

General part information

1.5KE Series

482V Clamp 3.2A Ipp Tvs Diode Through Hole DO-201

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M1.5KE350A	1.5KE Series

Applications	General Purpose	General Purpose
Current - Peak Pulse (10/1000µs)	3.2 A	2 - 134.5 A
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	175 ░C	175 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	Axial, DO-27, DO-201AA	Axial, DO-27, DO-201AA
Power - Peak Pulse	1.5 kW	1.5 kW
Power - Peak Pulse	1500 W	1500 W
Power Line Protection	False	False
Supplier Device Package	DO-201	DO-201
Type	Zener	Zener
Unidirectional Channels [custom]	1	1
Voltage - Breakdown (Min) [Min]	332 V	6.45 - 522.5 V
Voltage - Clamping (Max) @ Ipp	-	18.2 - 760 V
Voltage - Clamping (Max) @ Ipp [Max]	482 V	10.5 - 725 V
Voltage - Reverse Standoff (Typ)	300 V	5.8 - 467 V

1.5KE Series

TVS DIODE UP 43.6VRWM 70.1VC

Part	Package / Case	Mounting Type	Applications	Voltage - Breakdown (Min) [Min]	Unidirectional Channels [custom]	Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Reverse Standoff (Typ)	Current - Peak Pulse (10/1000µs)	Voltage - Clamping (Max) @ Ipp [Max]	Power - Peak Pulse	Power - Peak Pulse	Supplier Device Package	Voltage - Clamping (Max) @ Ipp
MDE Semiconductor Inc M1.5KE51A	Axial, DO-201AA, DO-27	Through Hole	General Purpose	48.5 V	1	Zener	-55 °C	175 ░C	43.6 V	21.7 A	70.1 V	1.5 kW	1500 W	DO-201
MDE Semiconductor Inc M1.5KE24A	Axial, DO-201AA, DO-27	Through Hole	General Purpose	22.8 V	1	Zener	-55 °C	175 ░C	20.5 V	45.8 A	33.2 V	1.5 kW	1500 W	DO-201
MDE Semiconductor Inc M1.5KE33A	Axial, DO-201AA, DO-27	Through Hole	General Purpose	31.4 V	1	Zener	-55 °C	175 ░C	28.2 V	33.3 A	45.7 V	1.5 kW	1500 W	DO-201
MDE Semiconductor Inc M1.5KE440A	Axial, DO-201AA, DO-27	Through Hole	General Purpose	418 V	1	Zener	-55 °C	175 ░C	376 V	2.5 A		1.5 kW	1500 W	DO-201	602 V
MDE Semiconductor Inc M1.5KE100A	Axial, DO-201AA, DO-27	Through Hole	General Purpose	95 V	1	Zener	-55 °C	175 ░C	85.5 V	11.1 A		1.5 kW	1500 W	DO-201	137 V
MDE Semiconductor Inc M1.5KE6.8A	Axial, DO-201AA, DO-27	Through Hole	General Purpose	6.45 V	1	Zener	-55 °C	175 ░C	5.8 V		10.5 V	1.5 kW	1500 W	DO-201
MDE Semiconductor Inc M1.5KE68A	Axial, DO-201AA, DO-27	Through Hole	General Purpose	64.6 V	1	Zener	-55 °C	175 ░C	58.1 V	16.5 A	92 V	1.5 kW	1500 W	DO-201
MDE Semiconductor Inc M1.5KE170A	Axial, DO-201AA, DO-27	Through Hole	General Purpose	162 V	1	Zener	-55 °C	175 ░C	145 V	6.5 A	234 V	1.5 kW	1500 W	DO-201
MDE Semiconductor Inc M1.5KE18A	Axial, DO-201AA, DO-27	Through Hole	General Purpose	17.1 V	1	Zener	-55 °C	175 ░C	15.3 V	60.3 A		1.5 kW	1500 W	DO-201	25.2 V
MDE Semiconductor Inc M1.5KE110A	Axial, DO-201AA, DO-27	Through Hole	General Purpose	105 V	1	Zener	-55 °C	175 ░C	94 V	10 A	152 V	1.5 kW	1500 W	DO-201
