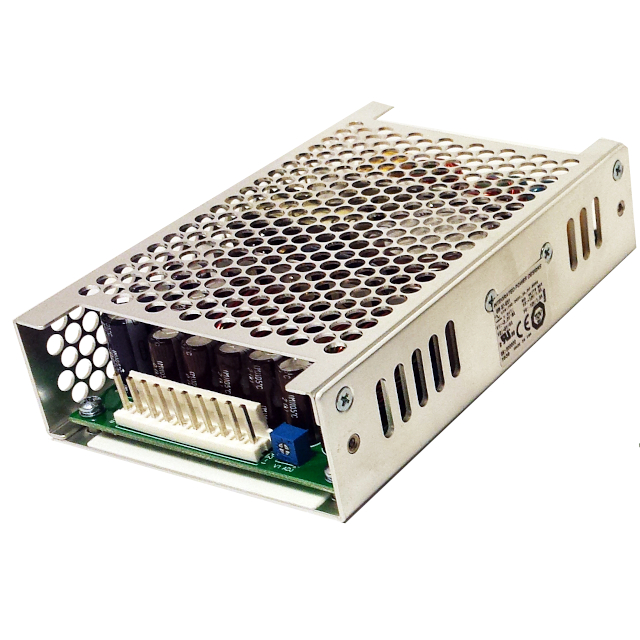

1011387CHCO

Active

Integrated Power Designs

GRN-80-2001 OVP CHCO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1011387CHCO

Active

Integrated Power Designs

GRN-80-2001 OVP CHCO

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 120.20
		25	$ 115.27
		100	$ 112.44

Description

General part information

GRN-80 Series

Enclosed AC DC Converters 2 Output 5V 24V 85 ~ 264 VAC Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1011387CHCO	GRN-80 Series

Applications	ITE (Commercial), Medical	ITE (Commercial), Medical
Approval Agency	TUV, cURus, CE, UKCA	TUV, cURus, CE, UKCA
Current - Output 1	8 A	1.7 - 16 A
Current - Output 2	2 A	1 - 5 A
Current - Output 3	-	2 A
Current - Output 4	-	1.5 A
Efficiency	88 %	85 - 88 %
Features	Remote Sense, Universal Input, Adjustable Output	Remote Sense, Universal Input, Adjustable Output
Minimum Load Required	False	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	2	1 - 4
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	0 °C	0 °C
Power (Watts)	80 W	53 - 109 W
Size / Dimension [x]	133.4 mm	114.3 - 133.4 mm
Size / Dimension [x]	5.25 "	4.5 - 5.25 in
Size / Dimension [y]	82.6 mm	69.9 - 82.6 mm
Size / Dimension [y]	3.25 "	3.25 - 69.85 mm
Size / Dimension [z]	32.5 mm	32.5 mm
Size / Dimension [z]	1.28 in	1.28 in
Standard Number	60601-1, 62368-1	60601-1, 62368-1
Type	Enclosed	Chassis, Enclosed
Voltage - Output 1	5 V	3.3 - 48 V
Voltage - Output 2	24 V	-15 - 24 V
Voltage - Output 3	-	-15 - 15 V
Voltage - Output 4	-	-15 V

GRN-80 Series

GRN-80-1005 CH

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Max]	Features	Number of Outputs	Mounting Type	Power (Watts)	Type	Standard Number	Voltage - Output 1	Applications	Current - Output 1	Approval Agency	Efficiency	Current - Output 4	Current - Output 2	Voltage - Output 2	Voltage - Output 4	Voltage - Output 3	Current - Output 3
Integrated Power Designs 1011281CH	32.5 mm	114.3 mm	69.9 mm	69.85 mm	1.28 in	4.5 in	70 °C	Adjustable Output, Remote Sense, Universal Input	1	Chassis Mount	80 W	Chassis	60601-1, 62368-1	24 V	ITE (Commercial), Medical	3.3 A	CE, cURus, TUV, UKCA	87 %
Integrated Power Designs 1011254CH	32.5 mm	133.4 mm	82.6 mm	3.25 "	1.28 in	5.25 "	70 °C	Adjustable Output, Remote Sense, Universal Input	4	Chassis Mount	80 W	Chassis	60601-1, 62368-1	5 V	ITE (Commercial), Medical	8 A	CE, cURus, TUV, UKCA	88 %	1.5 A	1 A	24 V	-15 V	15 V
Integrated Power Designs 1011277CHCO	32.5 mm	114.3 mm	69.9 mm	69.85 mm	1.28 in	4.5 in	70 °C	Adjustable Output, Remote Sense, Universal Input	1	Chassis Mount	53 W	Enclosed	60601-1, 62368-1	3.3 V	ITE (Commercial), Medical	16 A	CE, cURus, TUV, UKCA
Integrated Power Designs 1011390CH	32.5 mm	133.4 mm	82.6 mm	3.25 "	1.28 in	5.25 "	70 °C	Adjustable Output, Remote Sense, Universal Input	2	Chassis Mount	80 W	Chassis	60601-1, 62368-1	15 V	ITE (Commercial), Medical	3 A	CE, cURus, TUV, UKCA	88 %		3 A	-15 V
Integrated Power Designs 1011254CHCO	32.5 mm	133.4 mm	82.6 mm	3.25 "	1.28 in	5.25 "	70 °C	Adjustable Output, Remote Sense, Universal Input	4	Chassis Mount	80 W	Enclosed	60601-1, 62368-1	5 V	ITE (Commercial), Medical	8 A	CE, cURus, TUV, UKCA	88 %	1.5 A	1 A	24 V	-15 V	15 V
Integrated Power Designs 1011368CHCO	32.5 mm	114.3 mm	69.9 mm	69.85 mm	1.28 in	4.5 in	70 °C	Adjustable Output, Remote Sense, Universal Input	1	Chassis Mount	80 W	Enclosed	60601-1, 62368-1	48 V	ITE (Commercial), Medical	1.7 A	CE, cURus, TUV, UKCA	87 %
Integrated Power Designs 1011280CH	32.5 mm	114.3 mm	69.9 mm	69.85 mm	1.28 in	4.5 in	70 °C	Adjustable Output, Remote Sense, Universal Input	1	Chassis Mount	80 W	Chassis	60601-1, 62368-1	15 V	ITE (Commercial), Medical	5.3 A	CE, cURus, TUV, UKCA	87 %
Integrated Power Designs 1011390CHCO	32.5 mm	133.4 mm	82.6 mm	3.25 "	1.28 in	5.25 "	70 °C	Adjustable Output, Remote Sense, Universal Input	2	Chassis Mount	80 W	Enclosed	60601-1, 62368-1	15 V	ITE (Commercial), Medical	3 A	CE, cURus, TUV, UKCA	88 %		3 A	-15 V
Integrated Power Designs 1011385CHCO	32.5 mm	133.4 mm	82.6 mm	3.25 "	1.28 in	5.25 "	70 °C	Adjustable Output, Remote Sense, Universal Input	3	Chassis Mount	88 W	Enclosed	60601-1, 62368-1	5 V	ITE (Commercial), Medical	8 A	CE, cURus, TUV, UKCA	88 %		2 A	12 V		-12 V	2 A
Integrated Power Designs 1011252CH	32.5 mm	133.4 mm	82.6 mm	3.25 "	1.28 in	5.25 "	70 °C	Adjustable Output, Remote Sense, Universal Input	4	Chassis Mount	80 W	Chassis	60601-1, 62368-1	5 V	ITE (Commercial), Medical	8 A	CE, cURus, TUV, UKCA	88 %	1.5 A	5 A	-5 V		12 V
