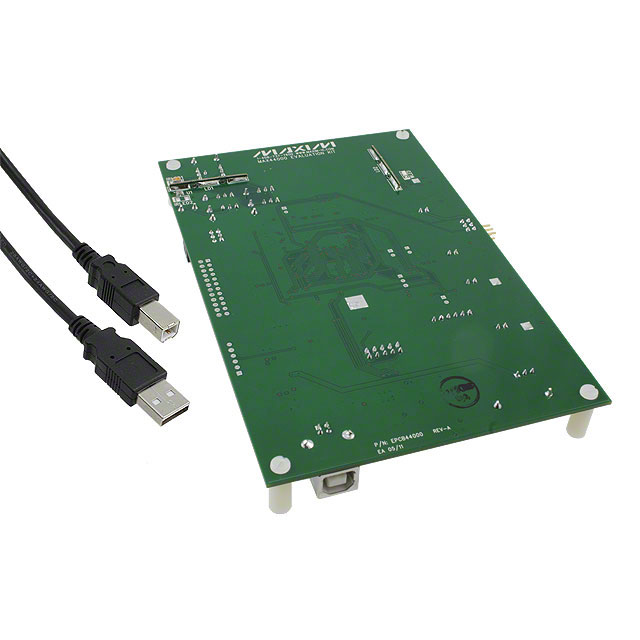

Specification	MAX44000EVKIT#

Contents	Board
Embedded	No
Interface	I2C
Sensor Type	Ambient Light, Infrared, Proximity
Supplied Contents	Board(s)
Utilized IC / Part	MAX44000
Voltage - Supply (Maximum)	3.6 V
Voltage - Supply (Minimum)	1.7 V

MAX440 Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Package Name	Package Length	Package Width	Proximity Detection	Mounting Type	Wavelength	Output Type	Package / Case	Type	Supplied Contents	Utilized IC / Part	Sensor Type	Interface	Contents	Output	Resolution (Bits)	Current - Supply (Max)	Features	Current - Supply	-3db Bandwidth	Slew Rate	Supply Configuration	Voltage - Supply (Dual) Minimum (Magnitude)	Voltage - Supply (Dual) Maximum (Magnitude)	Number of Circuits	Applications
Analog Devices Inc./Maxim Integrated MAX44004GDT+	-40 °C	105 °C	3.6 V	1.7 V	6-OTDFN	2 mm	2 mm	No	Surface Mount	555 nm	I2C	6-UDFN Exposed Pad	Ambient
Analog Devices Inc./Maxim Integrated MAX44004EVSYS#			3.6 V	1.7 V										Board(s)	MAX44004	Ambient Light	I2C	Board
Analog Devices Inc./Maxim Integrated MAX44006GDT+T	-40 °C	85 °C	2 V	1.7 V								6-VFDFN							I2C	14 b	30 µA	Gain Control Interrupt Programmable Resolution Sleep Mode
Analog Devices Inc./Maxim Integrated MAX44008EVSYS#														Board(s) Cable(s)	MAX44008	Color Sensor Light		Board Cable
Analog Devices Inc./Maxim Integrated MAX44000EDT+T	-40 °C	105 °C	3.6 V	1.7 V	6-DFN	2 mm	2 mm	Yes	Surface Mount		I2C	6-VDFN Exposed Pad	Ambient
Analog Devices Inc./Maxim Integrated MAX440CWI					28-SOIC	0.295 in	7.5 mm		Surface Mount														40 mA	110 MHz	370 V/µs	Dual Single	4.75 V	5.25 V	1	8:1 Multiplexer-Amplifier
Analog Devices Inc./Maxim Integrated MAX44008GDT+T	-40 °C	85 °C	5.5 V	2.7 V								6-VFDFN							I2C	14 b	30 µA	Gain Control Interrupt Programmable Resolution Sleep Mode
Analog Devices Inc./Maxim Integrated MAX44007EDT+T	-40 °C	85 °C	3.6 V	1.7 V	6-UTDFN-Opto	2 mm	2 mm	No	Surface Mount		I2C	6-UDFN Exposed Pad	Ambient
Analog Devices Inc./Maxim Integrated MAX440EPI					28-DIP 28-PDIP	0.6 in	15.24 mm		Through Hole														40 mA	110 MHz	370 V/µs	Dual Single	4.75 V	5.25 V	1	8:1 Multiplexer-Amplifier
Analog Devices Inc./Maxim Integrated MAX44000GDT+T	-40 °C	105 °C	3.6 V	1.7 V	6-OTDFN	2 mm	2 mm	Yes	Surface Mount		I2C	6-UDFN Exposed Pad	Ambient

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

MAX44000EVKIT# | Datasheet
