1052577-1
ActiveTE Connectivity AMP Connectors

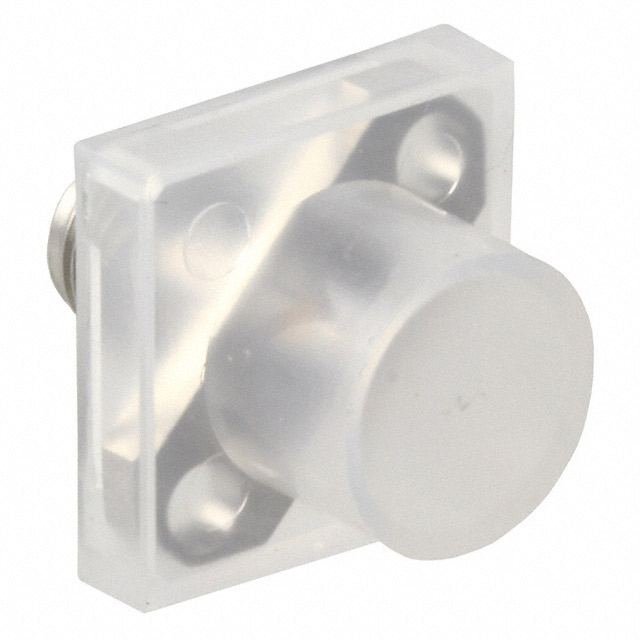

CONN SMA RCPT STR 50 OHM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1052577-1
ActiveTE Connectivity AMP Connectors
CONN SMA RCPT STR 50 OHM SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1052577-1 |
|---|---|
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Receptacle, Female Socket |
| Contact Termination | Solder Tab |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Feature | Flange |
| Number of Ports | 1 |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
1052577 Series
CONN SMA RCPT STR 50 OHM SOLDER
| Part | Mating Cycles | Contact Termination | Body Material | Connector Type | Center Contact Material | Impedance | Center Contact Plating | Number of Ports | Housing Color | Mounting Feature | Connector Style | Dielectric Material | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1052577-1 | 500 | Solder Tab | Stainless Steel | Female Socket, Receptacle | Beryllium Copper | 50 Ohms | Gold | 1 | Silver | Flange | SMA | Polytetrafluoroethylene (PTFE) | Solder |
Description
General part information
1052577 Series
SMA Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder Tab
