MC100EP142MNG
ActiveON Semiconductor

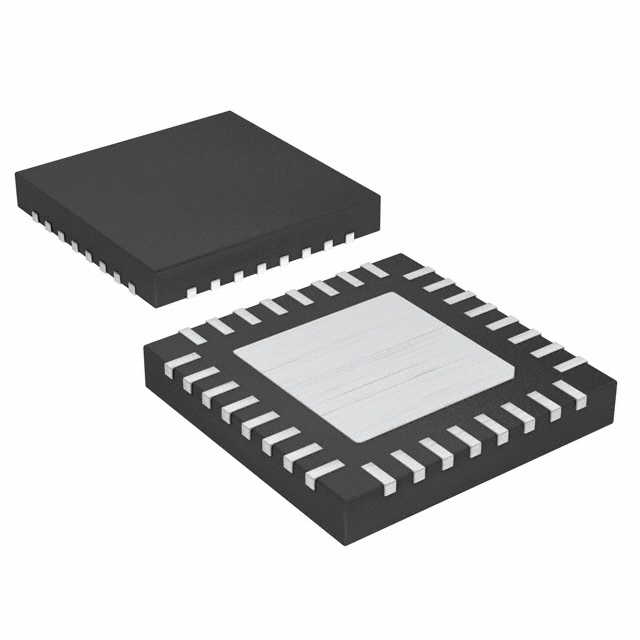

IC SHIFT REGISTER 9BIT ECL 32QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MC100EP142MNG
ActiveON Semiconductor
IC SHIFT REGISTER 9BIT ECL 32QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MC100EP142MNG | 100EP142 Series |
|---|---|---|
| Function | Universal | Universal |
| Logic Type | Shift Register | Shift Register |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Bits per Element | 9 | 9 |
| Number of Elements | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Type | Push-Pull | Push-Pull |
| Output Type | - | 1.81 mOhm |
| Package / Case | 32-VFQFN Exposed Pad | 32-LQFP, 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-QFN (5x5) | 32-LQFP (7x7), 32-QFN (5x5) |
| Voltage - Supply [Max] | 5.5 V | 5.5 V |
| Voltage - Supply [Min] | 3 V | 3 V |
100EP142 Series
SHIFT REGISTER, PARALLEL TO SERIAL, SERIAL TO PARALLEL, 1 ELEMENT, 9 BIT, LQFP, 32 PINS
| Part | Function | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply [Max] | Voltage - Supply [Min] | Logic Type | Number of Elements | Output Type | Mounting Type | Number of Bits per Element | Supplier Device Package | Output Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ON Semiconductor MC100EP142FAG | Universal | 32-LQFP | 85 °C | -40 °C | 5.5 V | 3 V | Shift Register | 1 | Push-Pull | Surface Mount | 9 | 32-LQFP (7x7) | |
ON Semiconductor MC100EP142MNR4G | Universal | 32-VFQFN Exposed Pad | 85 °C | -40 °C | 5.5 V | 3 V | Shift Register | 1 | Push-Pull | Surface Mount | 9 | 32-QFN (5x5) | |
ON Semiconductor MC100EP142FA | Universal | 32-LQFP | 85 °C | -40 °C | 5.5 V | 3 V | Shift Register | 1 | Surface Mount | 9 | 32-LQFP (7x7) | 1.81 mOhm | |
ON Semiconductor MC100EP142FAR2G | Universal | 32-LQFP | 85 °C | -40 °C | 5.5 V | 3 V | Shift Register | 1 | Push-Pull | Surface Mount | 9 | 32-LQFP (7x7) | |
ON Semiconductor MC100EP142MNG | Universal | 32-VFQFN Exposed Pad | 85 °C | -40 °C | 5.5 V | 3 V | Shift Register | 1 | Push-Pull | Surface Mount | 9 | 32-QFN (5x5) | |
ON Semiconductor MC100EP142FAR2 | Universal | 32-LQFP | 85 °C | -40 °C | 5.5 V | 3 V | Shift Register | 1 | Push-Pull | Surface Mount | 9 | 32-LQFP (7x7) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
100EP142 Series
Shift Shift Register 1 Element 9 Bit 32-QFN (5x5)
