Description
General part information

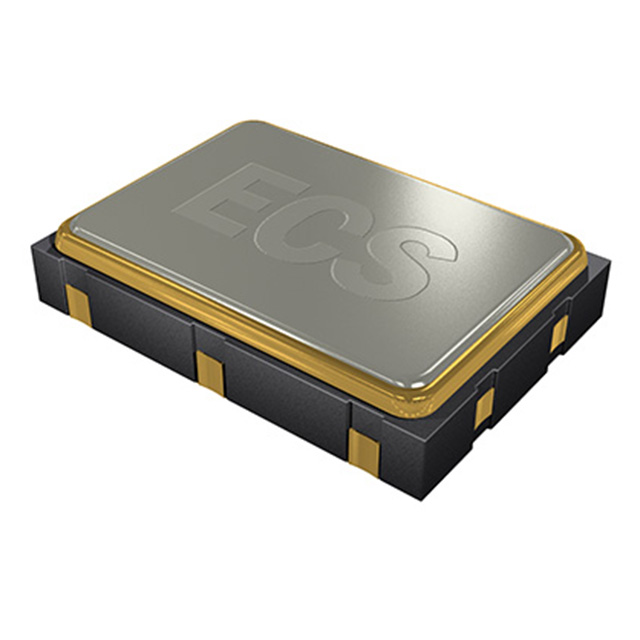

ECS-3225S18-100-FN-TR
10 MHz XO (Standard) HCMOS Oscillator 1.8V Enable/Disable 6-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | ECS-3225S18-100-FN-TR |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) | 10 µA |
| Current - Supply (Max) | 7 mA |
| Frequency | 10 MHz |
| Frequency Stability | 10 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.039 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | HCMOS |
| Package / Case | No Lead, 6-SMD |
| Package Length | 3.2 mm |
| Package Name | 6-SMD |
| Package Width | 2.5 mm |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.098 in |
| Type | XO (Standard) |
| Voltage - Supply | 1.8 V |
