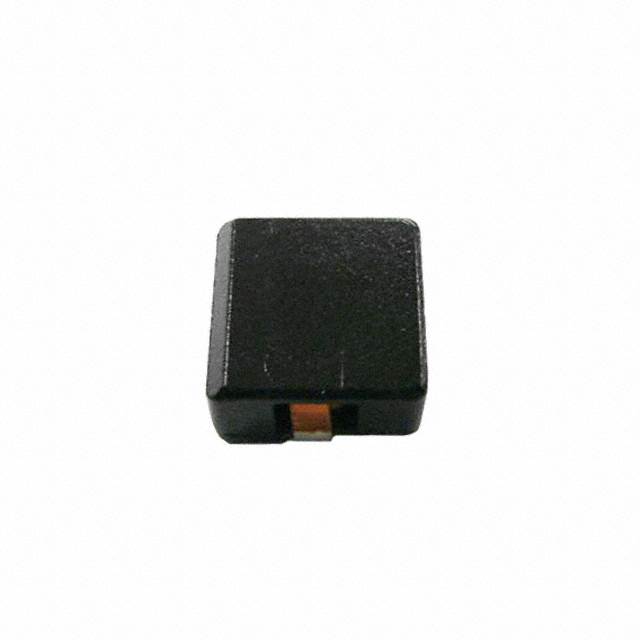

HM73-40R50LFTR13

Unknown

TT Electronics/BI Magnetics

FIXED IND 500NH 40A 1 MOHM SMD

Search across all available documentation for this part.

Unknown

TT Electronics/BI Magnetics

FIXED IND 500NH 40A 1 MOHM SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

FIXED IND 500NH 40A 1 MOHM SMD

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Inductance	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Package / Case	Current - Saturation (Isat)	Inductance Frequency - Test	DC Resistance (DCR) [Max]	Current Rating (Amps)	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]
TT Electronics/BI Magnetics HM73-40R50LFTR13	14.1 mm	0.512 in	13 mm	0.555 "	500 nH	Shielded	-40 °C	155 °C	0.256 in	6.5 mm	20 %	Nonstandard	49 A	100 kHz	1 mOhm	40 A	Surface Mount
TT Electronics/BI Magnetics HM73-31100LFTR13	13 mm	0.512 in	13 mm	0.512 in	10 µH	Shielded	-40 °C	155 °C	0.197 in	5 mm	20 %	Nonstandard	10 A	100 kHz	26 mOhm	6 A	Surface Mount
TT Electronics/BI Magnetics HM73-15R47LFTR13	0.461 in		0.413 "		470 nH	Shielded	-40 °C	155 °C			20 %	Nonstandard	35 A	100 kHz	1.55 mOhm	17 A	Surface Mount	0.157 in	4 mm	10.5 mm	11.7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

500 nH Shielded Inductor 40 A 1mOhm Max Nonstandard
