TLG-BLACK

Active

JBL Products, Inc.

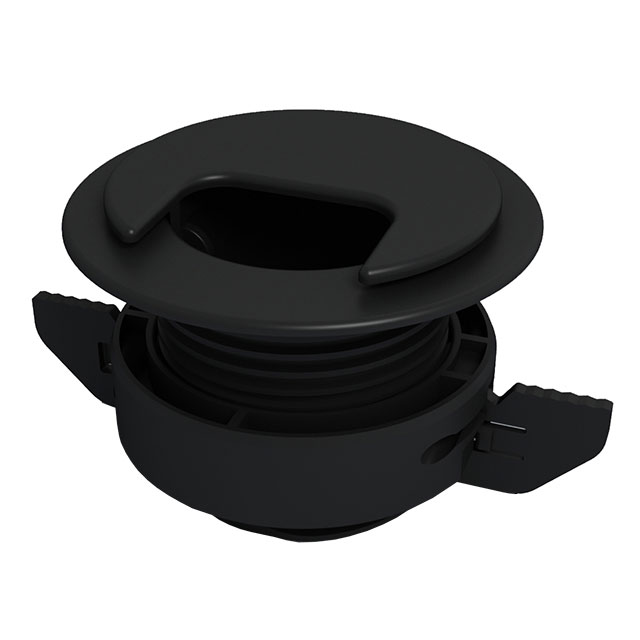

GROMMET ADJ 1.500" STYRENE BLACK

Search across all available documentation for this part.

Active

JBL Products, Inc.

GROMMET ADJ 1.500" STYRENE BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	TLG-BLACK

Bushing, Grommet Type	Grommet, Adjustable
Color	Black
Diameter - Inside [diameter]	1.5 in
Diameter - Inside [diameter]	38.1 mm
Features	Twist Lock
For Use With/Related Products	Wires, Cable
Material	Styrene
Panel Thickness [Max]	25.4 mm
Panel Thickness [Max]	1 in
Panel Thickness [Min]	9.52 mm
Panel Thickness [Min]	0.375 in

GROMMET ADJ 1.500" STYRENE BLACK

Part	Bushing, Grommet Type	Features	Color	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Material	For Use With/Related Products
JBL Products, Inc. TLG-BLACK	Grommet, Adjustable	Twist Lock	Black	1.5 in	38.1 mm	9.52 mm	25.4 mm	0.375 in	1 in	Styrene	Cable, Wires

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 9.95

General part information

Grommet, Adjustable 1.500" (38.10mm) Black

Technical documentation and resources

No documents available
