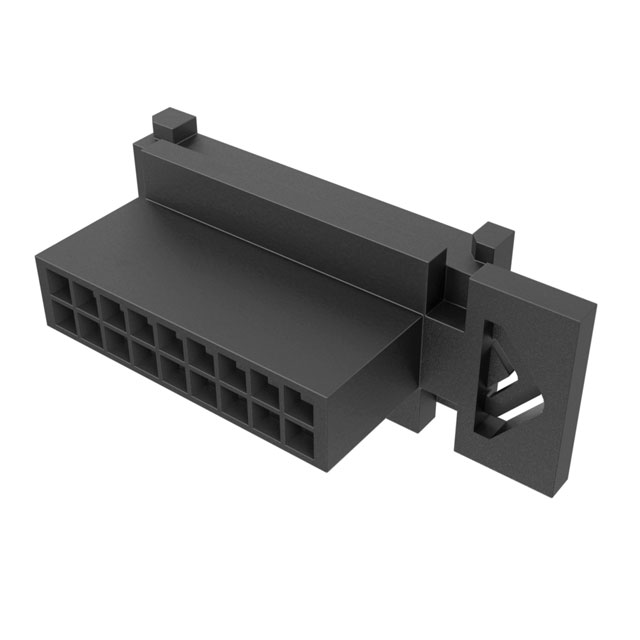

10160855-18GLF
ActiveAmphenol ICC (FCI)
MINITEK PWR 3.0, DUAL ROW BMI PL
10160855-18GLF
ActiveAmphenol ICC (FCI)
MINITEK PWR 3.0, DUAL ROW BMI PL
Description
General part information
10160855-18GLF
18 Rectangular Connectors - Housings Plug Black 0.118" (3.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 10160855-18GLF |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Features | Glow Wire Compliant |
| Insulation Material | Halogen Free, Nylon 6/6, Polyamide (PA66) |
| Mounting Type | Panel Mount |
| Number of Positions | 18 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.118 in |
| Row Spacing | 0.118 in |
