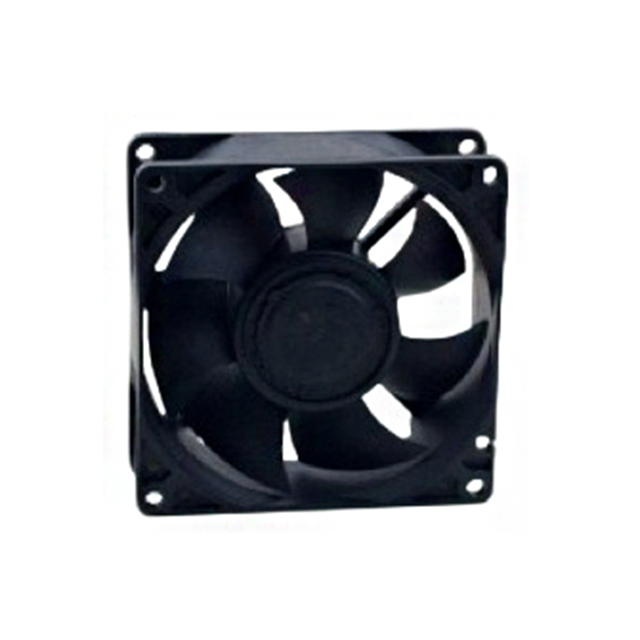

MR9232E12B1-FSR - MR9232

MR9232E12B1-FSR

Active
Mechatronics Bearing Group

FAN AXIAL 92X32MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDC Lead Wire SpecsDatasheet+1
MR9232E12B1-FSR - MR9232

MR9232E12B1-FSR

Active
Mechatronics Bearing Group

FAN AXIAL 92X32MM 12VDC WIRE

Deep-Dive with AI

DocumentsDC Lead Wire SpecsDatasheet+1

Technical Specifications

Parameters and characteristics for this part

SpecificationMR9232E12B1-FSR
Air Flow2.69 mł/min
Air Flow96 CFM
Approval AgencyCE, cUL, TUV, UL
Bearing TypeBall
Current Rating (Amps)0.98 A
Fan TypeTubeaxial
FeaturesAuto Restart, Speed Sensor (Tach)
Material - BladePlastic
Material - FramePlastic
Noise52.8 dB(A)
RPM5000 RPM
Static Pressure144.5 Pa
Static Pressure0.58 in H2O
Termination3 Wire Leads
Voltage - Rated12 VDC
Weight150.14 g
Weight0.331 lb
Width [y]32 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBox 100$ 13.23

Description

General part information

MR9232E12B1-FSR

Fan Tubeaxial 12VDC Square - 92mm L x 92mm H Ball 96.0 CFM (2.69m³/min) 3 Wire Leads
