MS3121E18-11S
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB RECEPT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3121E18-11S
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB RECEPT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3121E18-11S | MS3121E18 Series |
|---|---|---|
| - | - | |
| Applications | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military |
| Backshell Material, Plating | Aluminum, Olive Drab Chromate over Cadmium | Aluminum, Olive Drab Chromate over Cadmium |
| Color | Olive Drab | Olive Drab |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets, Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 13 A | 13 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Backshell | Backshell |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 11 | 11 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | 18-11 | 18-11 |
| Shell Size - Insert | - | 32 |
| Shell Size - Insert | - | 18 |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Voltage Rating | 1000 VAC | 1000 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 155.18 | |
| 10 | $ 143.80 | |||
| 25 | $ 138.63 | |||
| 50 | $ 137.59 | |||
MS3121E18 Series
RECEPT
| Part | Contact Finish - Mating | Orientation | Color | Primary Material | Shell Finish | Shell Material | Shell Size - Insert | Backshell Material, Plating | Voltage Rating | Qualification | Ingress Protection | Contact Material | Insert Material | Fastening Type | Termination | Shielding | Features | Connector Type | Mounting Type | Grade | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Number of Positions | Current Rating (Amps) | Shell Size - Insert [Max] | Shell Size - Insert [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3121E18-32P(LC) | |||||||||||||||||||||||||||
Amphenol Industrial Operations MS3121E18-11S | Gold | N | Olive Drab | Metal | Olive Drab Chromate over Cadmium | Aluminum | 18-11 | Aluminum, Olive Drab Chromate over Cadmium | 1000 VAC | MIL-DTL-26482 Series I | Environment Resistant | Copper Alloy | Neoprene | Bayonet Lock | Crimp | Unshielded | Backshell | Receptacle, Female Sockets | Free Hanging (In-Line) | Military | -55 °C | 125 °C | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | 11 | 13 A | ||
Amphenol Industrial Operations MS3121E18-32P | Gold | N | Olive Drab | Metal | Olive Drab Chromate over Cadmium | Aluminum | Aluminum, Olive Drab Chromate over Cadmium | MIL-DTL-26482 Series I | Environment Resistant | Copper Alloy | Neoprene | Bayonet Lock | Crimp | Unshielded | Backshell | Male Pins, Receptacle | Free Hanging (In-Line) | Military | -55 °C | 125 °C | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | 32 | 18 |
Description
General part information
MS3121E18 Series

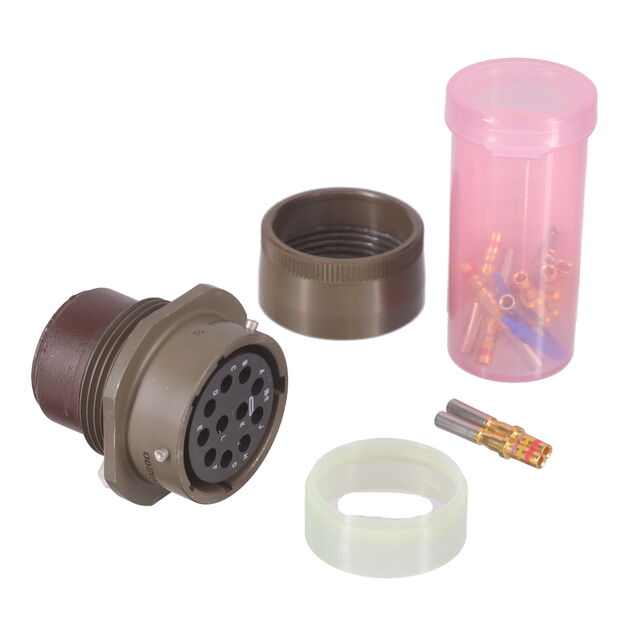

11 Position Circular Connector Receptacle, Female Sockets Crimp
