CT4502
ActiveALLIGATOR CLIP, 1.2" MAX JAW OPEN, 3.6" LENGTH, 20 A, 1500 V, BLACK, RED
Deep-Dive with AI
Search across all available documentation for this part.

CT4502
ActiveALLIGATOR CLIP, 1.2" MAX JAW OPEN, 3.6" LENGTH, 20 A, 1500 V, BLACK, RED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CT4502 |
|---|---|
| Color | Red |
| Current Rating (Amps) | 20 A |
| Insulation | Non-Insulated |
| Jaw Opening | 1.181 in |
| Jaw Opening | 30 mm |
| Length | 92 mm |
| Length | 3.622 in |
| Ratings | CAT III 1500V, CAT IV 1000V, IEC 61010-031 |
| Termination | Banana, Female Socket (Jack) |
| Voltage - Rated | 1000 V, 1500 V |
| Voltage - Rated | 1 kV, 1.5 kV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
CT4502

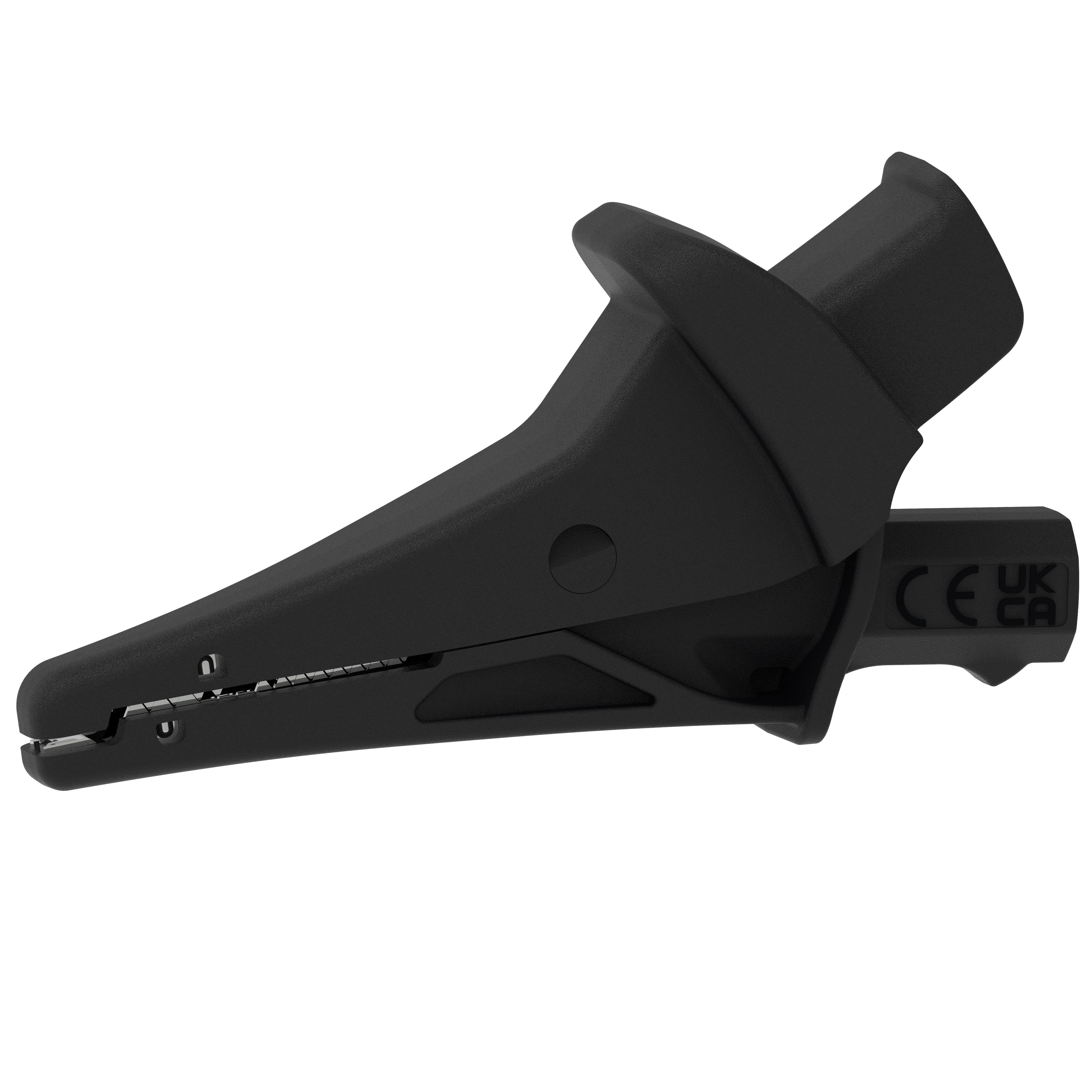

CT4502 is a photovoltaic alligator clip (pair: black and red). It features a high working voltage rating of 1500V CAT III making it ideal when working with photovoltaic panels as well as other applications. The 4mm jack accepts both sheathed and standard plugs, making this clip easy to connect to measuring devices. Its 30mm jaw opening provides flexibility and ensures a secure connection. With a higher voltage rating, this will provide convenience and the safety required when working with solar panels.
