11_N-50-7-61/133_NE

Active

Huber+Suhner, Inc.

11_N-50-7-61/133_NE

Deep-Dive with AI

Search across all available documentation for this part.

11_N-50-7-61/133_NE

Active

Huber+Suhner, Inc.

11_N-50-7-61/133_NE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 29.68
		10	$ 22.91
		25	$ 20.75
		50	$ 19.30
		100	$ 17.98
		250	$ 16.43
		500	$ 15.38

Description

General part information

11_N-50 Series

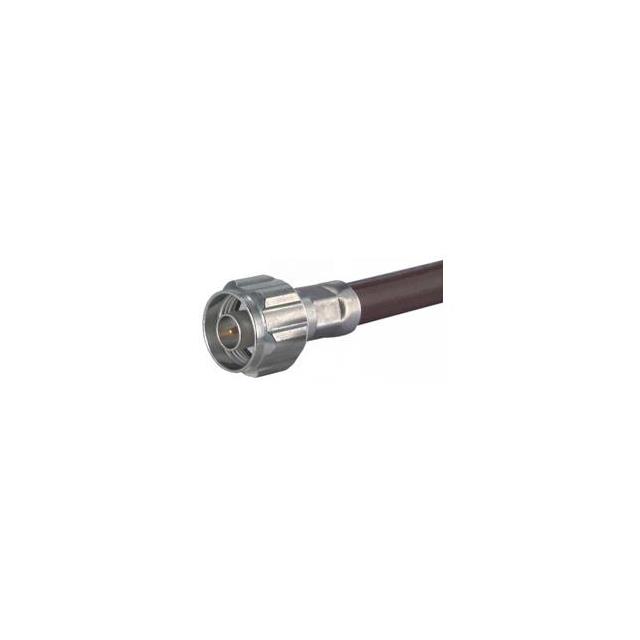

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	11_N-50-7-61/133_NE	11_N-50 Series

	-	-
Body Finish	White Bronze	White Bronze, Nickel, Tri-Metal, Silver, Gold
Body Material	Brass	Brass, Bronze
Cable Group	393, RG-225	RG-141, RG-6C, RG-214, Helical, 393, RG-225, 223, RG-142, LMR-600, RG-174, 188, 316, LMR-195, 400, LMR-400, RG-B4C
Cable Group	-	0.5 in
Center Contact Material	Brass	Beryllium Copper, Brass, Bronze
Center Contact Plating	Gold	Gold, Silver
Connector Style	N Type	N Type
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Crimp	Crimp, Solder
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE), Perfluoroalkoxy (PFA)
Frequency - Max [Max]	11 GHz	3 - 18 GHz
Housing Color	Silver	Silver, Gold
Impedance	50 Ohms	50 Ohms
Ingress Protection	-	IP67 - Dust Tight, Waterproof
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	165 °C	70 - 165 °C
Operating Temperature [Min]	-65 ░C	-65 - -40 °C
Shield Termination	Crimp	Solder, Clamp, Crimp
Voltage Rating	1000 VDC	1000 VDC

11_N-50 Series

11_N-50-3-51/133_NE

Part	Body Finish	Contact Termination	Mounting Type	Mating Cycles	Impedance	Voltage Rating	Body Material	Number of Ports	Frequency - Max [Max]	Connector Type	Connector Style	Operating Temperature [Max]	Operating Temperature [Min]	Cable Group	Center Contact Material	Shield Termination	Housing Color	Center Contact Plating	Dielectric Material	Cable Group
Huber+Suhner, Inc. 11_N-50-3-51/133_NE	White Bronze	Crimp	Free Hanging (In-Line)	500	50 Ohms	1000 VDC	Brass	1	18 GHz	Male Pin, Plug	N Type	70 °C	-55 °C	RG-141	Beryllium Copper	Solder	Silver	Gold
Huber+Suhner, Inc. 11_N-50-3-26/133_NH
Huber+Suhner, Inc. 11_N-50-6-19/12-_NE	Nickel	Crimp	Free Hanging (In-Line)	500	50 Ohms	1000 VDC	Brass	1	18 GHz	Male Pin, Plug	N Type	165 °C	-60 °C	RG-6C	Beryllium Copper	Clamp	Silver	Gold	Polytetrafluoroethylene (PTFE)
Huber+Suhner, Inc. 11_N-50-7-44/133_NH	White Bronze	Crimp	Free Hanging (In-Line)	500	50 Ohms	1000 VDC	Brass	1	11 GHz	Male Pin, Plug	N Type	165 °C	-65 ░C	RG-214	Brass	Crimp	Silver	Gold	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Huber+Suhner, Inc. 11_N-50-7-56/133_UE	Tri-Metal	Crimp	Free Hanging (In-Line)	500	50 Ohms		Brass	1	11 GHz	Male Pin, Plug	N Type	165 °C	-65 ░C		Brass	Crimp	Silver	Gold
Huber+Suhner, Inc. 11_N-50-12-60/033_-E	White Bronze	Crimp	Free Hanging (In-Line)	500	50 Ohms	1000 VDC	Brass	1	11 GHz	Male Pin, Plug	N Type	85 °C	-55 °C	Helical	Bronze	Clamp	Silver	Silver	Polytetrafluoroethylene (PTFE)	0.5 in
Huber+Suhner, Inc. 11_N-50-4-9/133_NE	White Bronze	Crimp	Free Hanging (In-Line)	500	50 Ohms	1000 VDC	Brass	1	11 GHz	Male Pin, Plug	N Type	165 °C	-65 ░C		Bronze	Clamp	Silver	Gold	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Huber+Suhner, Inc. 11_N-50-9-9/033_-E	White Bronze	Crimp	Free Hanging (In-Line)	500	50 Ohms	1000 VDC	Brass	1	11 GHz	Male Pin, Plug	N Type	85 °C	-40 °C		Bronze	Clamp	Silver	Silver	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Huber+Suhner, Inc. 11_N-50-5-18/103_NH	Silver	Solder	Free Hanging (In-Line)	500	50 Ohms	1000 VDC	Brass	1	11 GHz	Male Pin, Plug	N Type	165 °C	-65 ░C		Beryllium Copper	Solder	Silver	Gold	Polytetrafluoroethylene (PTFE)
Huber+Suhner, Inc. 11_N-50-7-74/133_UE-1	White Bronze	Crimp	Free Hanging (In-Line)	500	50 Ohms	1000 VDC	Brass	1	11 GHz	Male Pin, Plug	N Type	160 °C	-40 °C		Bronze	Clamp	Silver	Gold	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
