45-1828.1C90.001.105

Active

EAO

ROTARY SWITCH, 2 POSITION, 1 POLE, 90 °, 10 A, 500 V, 45 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

45-1828.1C90.001.105

Active

EAO

ROTARY SWITCH, 2 POSITION, 1 POLE, 90 °, 10 A, 500 V, 45 SERIES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 59.24
		10	$ 53.97
		25	$ 50.35
		50	$ 48.38
		100	$ 45.09
Newark	Each	10	$ 55.24
		25	$ 52.64
		50	$ 50.04

Description

General part information

45-1828 Series

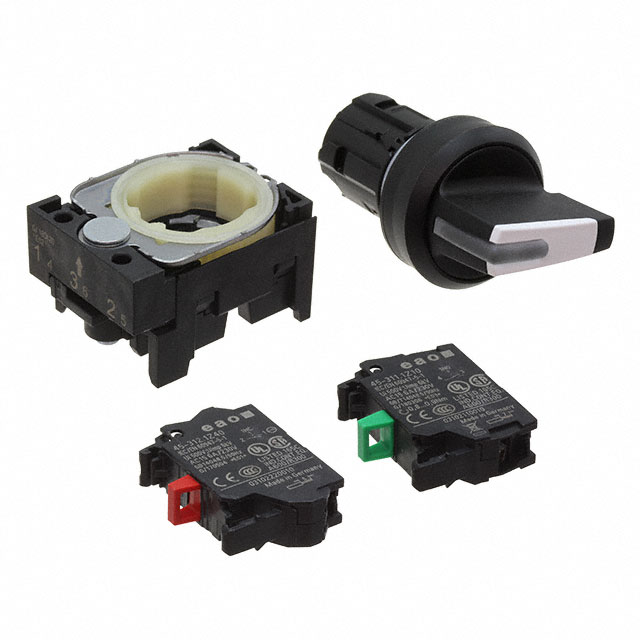

The 45-1828.1C90.001.105 from EAO is a selector switch. This actuator is intuitive to operate, provide distinctive tactile feedback, has a long service life of up to 1 million switching cycles and high front protection (up to IP69K).

Specification	45-1828.1C90.001.105	45-1828 Series

Approval Agency	UL, CSA, VDE, CCC, CE	UL, CSA, VDE, CCC, CE
Circuit	DPST-NO/NC	DPST-NO/NC, SPST-NO
Current Rating (Amps)	10 A	10 A
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP69K, IP67, IP66	IP69K, IP67, IP66
Mechanical Life	1000000 Cycles	1000000 Cycles
Number of Positions	2	2
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm	22.3 mm
Switch Function	On-Off, Off-On	On-Off, Off-On
Termination Style	Screw Terminal	Spring Terminal, Screw Terminal
Type	Standard	Standard
Voltage Rating - AC	500 V	500 V
Voltage Rating - DC	500 V	500 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Illumination	Voltage Rating - DC	Ingress Protection	Approval Agency	Type	Circuit	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Switch Function	Current Rating (Amps)	Number of Positions	Mechanical Life
EAO 45-1828.3C90.001.408	70 °C	-25 °C	Spring Terminal	Non-Illuminated	500 V	IP66, IP67, IP69K	CCC, CE, CSA, UL, VDE	Standard	DPST-NO/NC	22.3 mm	500 V	Off-On, On-Off	10 A	2	1000000 Cycles
EAO 45-1828.3C90.001.401	70 °C	-25 °C	Spring Terminal	Non-Illuminated	500 V	IP66, IP67, IP69K	CCC, CE, CSA, UL, VDE	Standard	SPST-NO	22.3 mm	500 V	Off-On	10 A	2	1000000 Cycles
EAO 45-1828.3C90.001.105	70 °C	-25 °C	Screw Terminal	Non-Illuminated	500 V	IP66, IP67, IP69K	CCC, CE, CSA, UL, VDE	Standard	DPST-NO/NC	22.3 mm	500 V	Off-On, On-Off	10 A	2	1000000 Cycles
EAO 45-1828.1C90.001.105	70 °C	-25 °C	Screw Terminal	Non-Illuminated	500 V	IP66, IP67, IP69K	CCC, CE, CSA, UL, VDE	Standard	DPST-NO/NC	22.3 mm	500 V	Off-On, On-Off	10 A	2	1000000 Cycles
EAO 45-1828.2C90.001.401	70 °C	-25 °C	Spring Terminal	Non-Illuminated	500 V	IP66, IP67, IP69K	CCC, CE, CSA, UL, VDE	Standard	SPST-NO	22.3 mm	500 V	Off-On	10 A	2	1000000 Cycles
EAO 45-1828.2C90.001.408	70 °C	-25 °C	Spring Terminal	Non-Illuminated	500 V	IP66, IP67, IP69K	CCC, CE, CSA, UL, VDE	Standard	DPST-NO/NC	22.3 mm	500 V	Off-On, On-Off	10 A	2	1000000 Cycles
EAO 45-1828.1C90.001.401	70 °C	-25 °C	Spring Terminal	Non-Illuminated	500 V	IP66, IP67, IP69K	CCC, CE, CSA, UL, VDE	Standard	SPST-NO	22.3 mm	500 V	Off-On	10 A	2	1000000 Cycles
EAO 45-1828.2C90.001.105	70 °C	-25 °C	Screw Terminal	Non-Illuminated	500 V	IP66, IP67, IP69K	CCC, CE, CSA, UL, VDE	Standard	DPST-NO/NC	22.3 mm	500 V	Off-On, On-Off	10 A	2	1000000 Cycles
EAO 45-1828.2C90.001.101	70 °C	-25 °C	Screw Terminal	Non-Illuminated	500 V	IP66, IP67, IP69K	CCC, CE, CSA, UL, VDE	Standard	SPST-NO	22.3 mm	500 V	Off-On	10 A	2	1000000 Cycles
