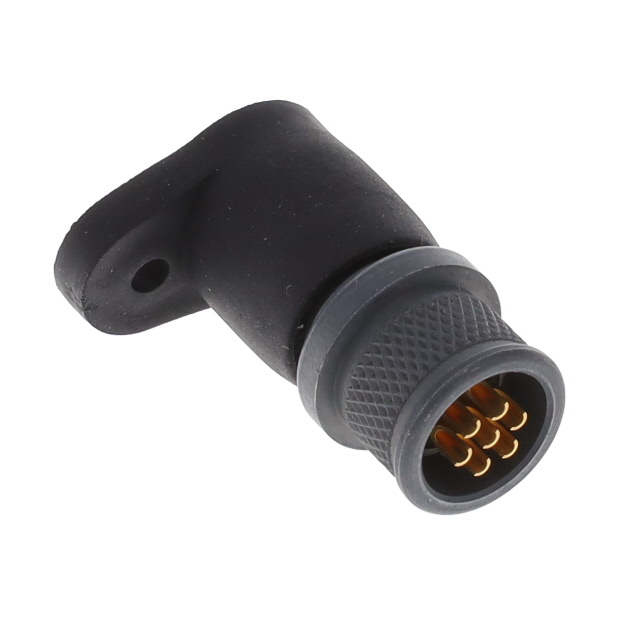

SCE2-B-06K06-07SN

Active

Amphenol

CONN PLUG FMALE 7P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SCE2-B-06K06-07SN

Active

Amphenol

CONN PLUG FMALE 7P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 88.84
		10	$ 81.52
		25	$ 78.39
		50	$ 75.77
		100	$ 71.59

Description

General part information

SCE2-B Series

7 Position Circular Connector Plug, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SCE2-B-06K06-07SN	SCE2-B Series

Backshell Material, Plating	Brass, Black Silver	Brass, Black Silver
Color	Black	Black
Connector Type	Female Sockets, Plug	Receptacle, Male Pins, Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1 µm	1 µm
Contact Finish Thickness - Mating	39.4 µin	39.4 µin
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	3 A, 1.5 A, 7.5 A	1.5 - 7.5 A
Fastening Type	Push-Pull	Push-Pull
Features	Backshell	Coupling Nut, Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Mounting Feature	-	Bulkhead - Front Side Nut
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Through Hole, Panel Mount
Number of Positions	7	7 - 37
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	N	N
Primary Material	Metal	Metal
Shell Finish	Black	Black
Shell Material	Brass	Brass
Shell Size - Insert	-	10-37, 7-A10
Shell Size - Insert [Max]	7	7 - 26
Shell Size - Insert [Min]	6	6 - 9
Shielding	Unshielded	Unshielded
Termination	-	Solder
Voltage Rating	400 VAC	400 VAC

SCE2-B Series

CONN RCPT MALE 14P GOLD SLDR CUP

Part	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Number of Positions	Primary Material	Ingress Protection	Current Rating (Amps)	Contact Material	Fastening Type	Features	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Color	Shell Finish	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Orientation	Backshell Material, Plating	Shielding	Voltage Rating	Contact Finish - Mating	Mounting Type	Mounting Feature	Termination	Shell Size - Insert
Amphenol SCE2-B-L1K07-14PN	Brass	-55 °C	125 °C	Male Pins, Receptacle	14	Metal	IP68 - Dust Tight, Waterproof	1.5 A, 3 A, 7.5 A	Copper Alloy	Push-Pull	Backshell, Coupling Nut	7	14	Black	Black	1 µm	39.4 µin	N	Black Silver, Brass	Unshielded	400 VAC	Gold	Free Hanging (In-Line)
Amphenol SCE2-B-76A10-37SN-001	Brass	-55 °C	125 °C	Female Sockets, Plug	37	Metal	IP68 - Dust Tight, Waterproof	1.5 A, 3 A, 7.5 A	Copper Alloy	Push-Pull				Black	Black	1 µm	39.4 µin	N		Unshielded	400 VAC	Gold	Panel Mount, Through Hole	Bulkhead - Front Side Nut	Solder	10-37
Amphenol SCE2-B-01K06-07PN	Brass	-55 °C	125 °C	Male Pins, Receptacle	7	Metal	IP68 - Dust Tight, Waterproof	1.5 A, 3 A, 7.5 A	Copper Alloy	Push-Pull	Backshell	6	7	Black	Black	1 µm	39.4 µin	N	Black Silver, Brass	Unshielded	400 VAC	Gold	Free Hanging (In-Line)
Amphenol SCE2-B-76A09-26SN-001	Brass	-55 °C	125 °C	Female Sockets, Plug	26	Metal	IP68 - Dust Tight, Waterproof	1.5 A, 3 A, 7.5 A	Copper Alloy	Push-Pull		9	26	Black	Black	1 µm	39.4 µin	N		Unshielded	400 VAC	Gold	Panel Mount, Through Hole	Bulkhead - Front Side Nut	Solder
Amphenol SCE2-B-L1K10-37PN	Brass	-55 °C	125 °C	Male Pins, Receptacle	37	Metal	IP68 - Dust Tight, Waterproof	1.5 A, 3 A, 7.5 A	Copper Alloy	Push-Pull	Backshell, Coupling Nut			Black	Black	1 µm	39.4 µin	N	Black Silver, Brass	Unshielded	400 VAC	Gold	Free Hanging (In-Line)			10-37
Amphenol SCE2-B-L1K06-07PN	Brass	-55 °C	125 °C	Male Pins, Receptacle	7	Metal	IP68 - Dust Tight, Waterproof	1.5 A, 3 A, 7.5 A	Copper Alloy	Push-Pull	Backshell, Coupling Nut	6	7	Black	Black	1 µm	39.4 µin	N	Black Silver, Brass	Unshielded	400 VAC	Gold	Free Hanging (In-Line)
Amphenol SCE2-B-76A07-10ASN-002	Brass	-55 °C	125 °C	Female Sockets, Plug	10	Metal	IP68 - Dust Tight, Waterproof	1.5 A, 3 A, 7.5 A	Copper Alloy	Push-Pull				Black	Black	1 µm	39.4 µin	N		Unshielded	400 VAC	Gold		Bulkhead - Front Side Nut		7-A10
Amphenol SCE2-B-06K07-14SN	Brass	-55 °C	125 °C	Female Sockets, Plug	14	Metal	IP68 - Dust Tight, Waterproof	1.5 A, 3 A, 7.5 A	Copper Alloy	Push-Pull	Backshell	7	14	Black	Black	1 µm	39.4 µin	N	Black Silver, Brass	Unshielded	400 VAC	Gold	Free Hanging (In-Line)
Amphenol SCE2-B-76A07-14SN-002	Brass	-55 °C	125 °C	Female Sockets, Plug	14	Metal	IP68 - Dust Tight, Waterproof	1.5 A, 3 A, 7.5 A	Copper Alloy	Push-Pull		7	14	Black	Black	1 µm	39.4 µin	N		Unshielded	400 VAC	Gold		Bulkhead - Front Side Nut
Amphenol SCE2-B-76A08-19SN-002	Brass	-55 °C	125 °C	Female Sockets, Plug	19	Metal	IP68 - Dust Tight, Waterproof	1.5 A, 3 A, 7.5 A	Copper Alloy	Push-Pull		8	19	Black	Black	1 µm	39.4 µin	N		Unshielded	400 VAC	Gold		Bulkhead - Front Side Nut
