MSW02E12-14S

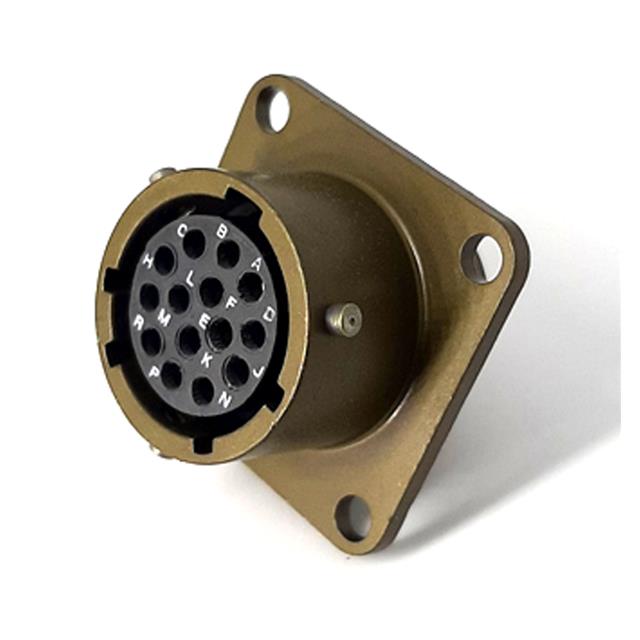

14 Position Circular Connector Receptacle, Female Sockets Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | MSW02E12-14S |
|---|---|
| Applications | Military |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Cadmium |
| Current Rating | 7.5 A |
| Fastening Type | Bayonet Lock |
| Ingress Protection | Environment Resistant |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount |
| Number of Positions | 14 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Shell Finish | Cadmium |
| Shell Material | Aluminum |
| Shell Size - Insert (Maximum) | 14 |
| Shell Size - Insert (Minimum) | 12 |
| Termination | Solder Cup |
| Voltage Rating | 800 V |
