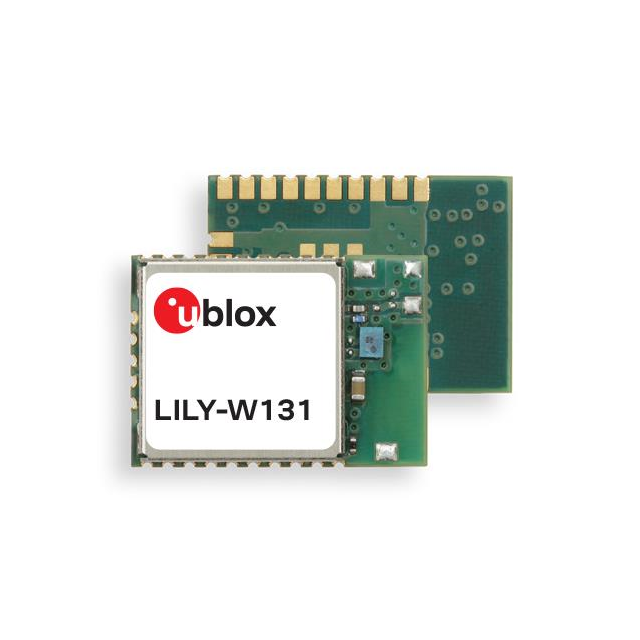

LILY-W131-10B
Obsoleteu-blox
RF TXRX MODULE WIFI SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LILY-W131-10B
Obsoleteu-blox
RF TXRX MODULE WIFI SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LILY-W131-10B |
|---|---|
| Antenna Type | Antenna Not Included |
| Current - Receiving [Max] | 84 mA |
| Current - Receiving [Min] | 82 mA |
| Current - Transmitting [Max] | 340 mA |
| Current - Transmitting [Min] | 270 mA |
| Data Rate | 72.2 Mbps |
| Frequency [Max] | 2.472 GHz |
| Frequency [Min] | 2.412 GHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 37-SMD Module |
| Power - Output | 19 dBm |
| Protocol | 802.11b/g/n |
| RF Family/Standard | WiFi |
| Sensitivity | -97 dBm |
| Serial Interfaces | USB, SDIO |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 10.66 | |
| 10 | $ 9.60 | |||
| Digi-Reel® | 1 | $ 10.66 | ||
| 10 | $ 9.60 | |||
Description
General part information
LILY-W131 Series
WiFi 802.11b/g/n Transceiver Module 2.412GHz ~ 2.472GHz Antenna Not Included Surface Mount
