Description
General part information

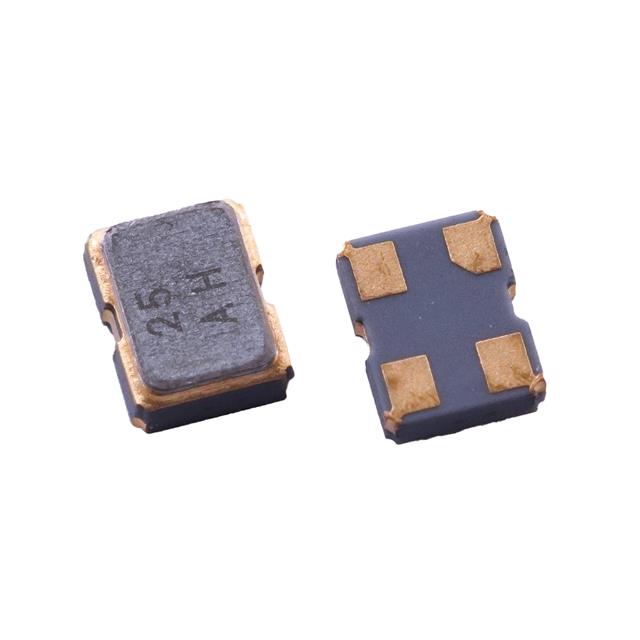

TW0523D
Oscillator
Technical Specifications
Parameters and characteristics for this part
| Specification | TW0523D |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 2 mA |
| Frequency | 24 MHz |
| Frequency Stability | 50 ppm |
| Function | Standby (Power Down) |
| Height - Seated (Max) | 0.035 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | CMOS |
| Package / Case | 4-SMD, No Lead |
| Package Length | 2.05 mm |
| Package Name | 4-SMD |
| Package Width | 1.65 mm |
| Size / Dimension Length | 0.081 in |
| Size / Dimension Width | 0.065 in |
| Type | MHz Crystal |
| Voltage - Supply | 1.8 V |
