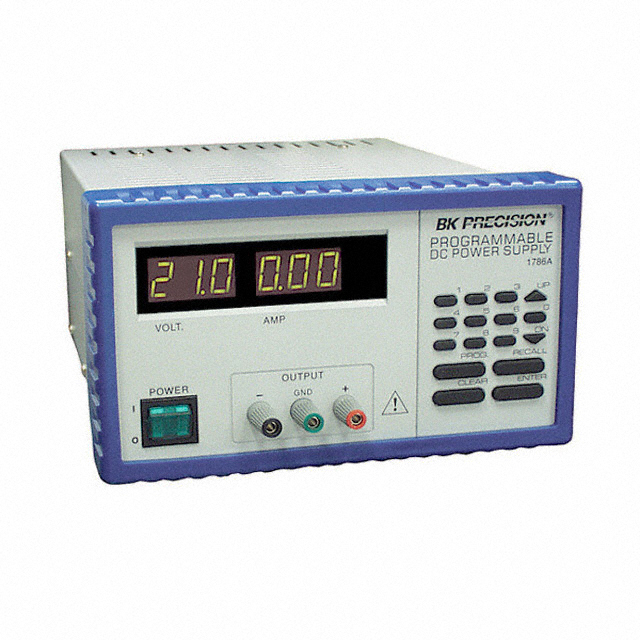

1786A
ObsoleteB&K PRECISION
POWER SUPPLY DIGITAL PROGRAM
1786A
ObsoleteB&K PRECISION
POWER SUPPLY DIGITAL PROGRAM
Description
General part information
1786A
0 ~ 30VDC Output Bench (AC to DC) Power Supply LED 0 ~ 3A Output Features Programmable
Technical Specifications
Parameters and characteristics for this part
| Specification | 1786A |
|---|---|
| Current - Output (Max) | 3 A |
| Current - Output (Min) | 0 A |
| Display Type | LED |
| Features | Programmable |
| Number of Characters | 3 characters |
| Number of Characters (Secondary) | 2 characters |
| Number of Outputs | 1 |
| Ripple Voltage (RMS) | 1 mV |
| Size / Dimension Height | 114.3 mm |
| Size / Dimension Length | 10.6 in |
| Size / Dimension Width | 8.1 in |
| Type | Bench (AC to DC) |
| Voltage - Output (Max) | 30 V |
| Voltage - Output (Min) | 0 V |
| Voltage - Supply | 220 VAC, 110 VAC |
| Voltage - Supply | 220VAC, 110VAC |
| Voltage Regulation - Line (Absolute) | 5 mV |
| Voltage Regulation - Line (Percentage) | 0.02 % |
| Voltage Regulation - Load (Percentage) | 0.02 % |
| Voltage Regulation - Load (Voltage Offset) | 5 mV |
| Weight | 11 lbs |
