3-1418390-1

Active

TE Connectivity AMP Connectors

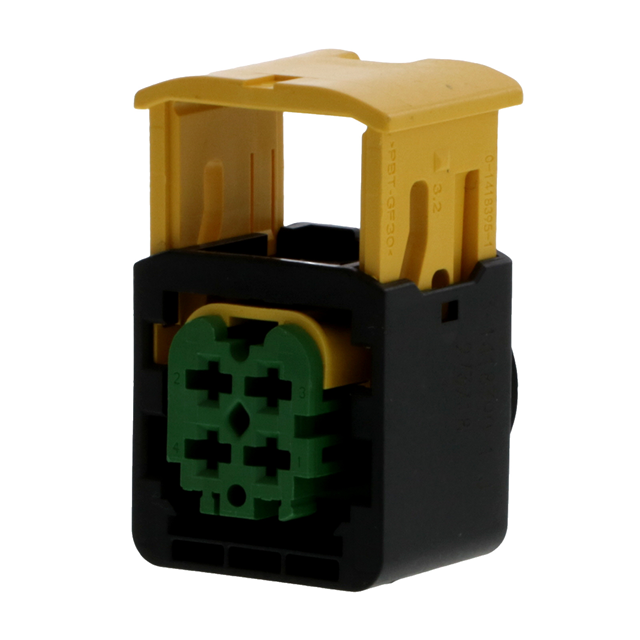

CONN RCPT HSG 4POS 6.00MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 4POS 6.00MM

Technical Specifications

Parameters and characteristics for this part

Specification	3-1418390-1

Color	Green
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Slide-On
Features	Sealed
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Number of Rows	2
Operating Temperature [Max]	140 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.236 in
Pitch [x]	6 mm
Row Spacing [Max]	0.236 in
Row Spacing [Max]	6 mm

CONN RCPT HSG 4POS 6.00MM

Part	Number of Positions	Fastening Type	Contact Type	Note	Connector Type	Insulation Material	Mounting Type	Pitch [x]	Pitch [x]	Number of Rows	Contact Termination	Row Spacing [Max]	Row Spacing [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Color	Features
TE Connectivity AMP Connectors 3-1418390-1	4	Slide-On	Female Socket	Contacts Not Included	Receptacle	Polybutylene Terephthalate (PBT), Glass Filled	Free Hanging (In-Line)	0.236 in	6 mm	2	Crimp	0.236 in	6 mm	140 °C	-40 °C	Green	Sealed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Rectangular Connectors - Housings Receptacle Green 0.236" (6.00mm)
