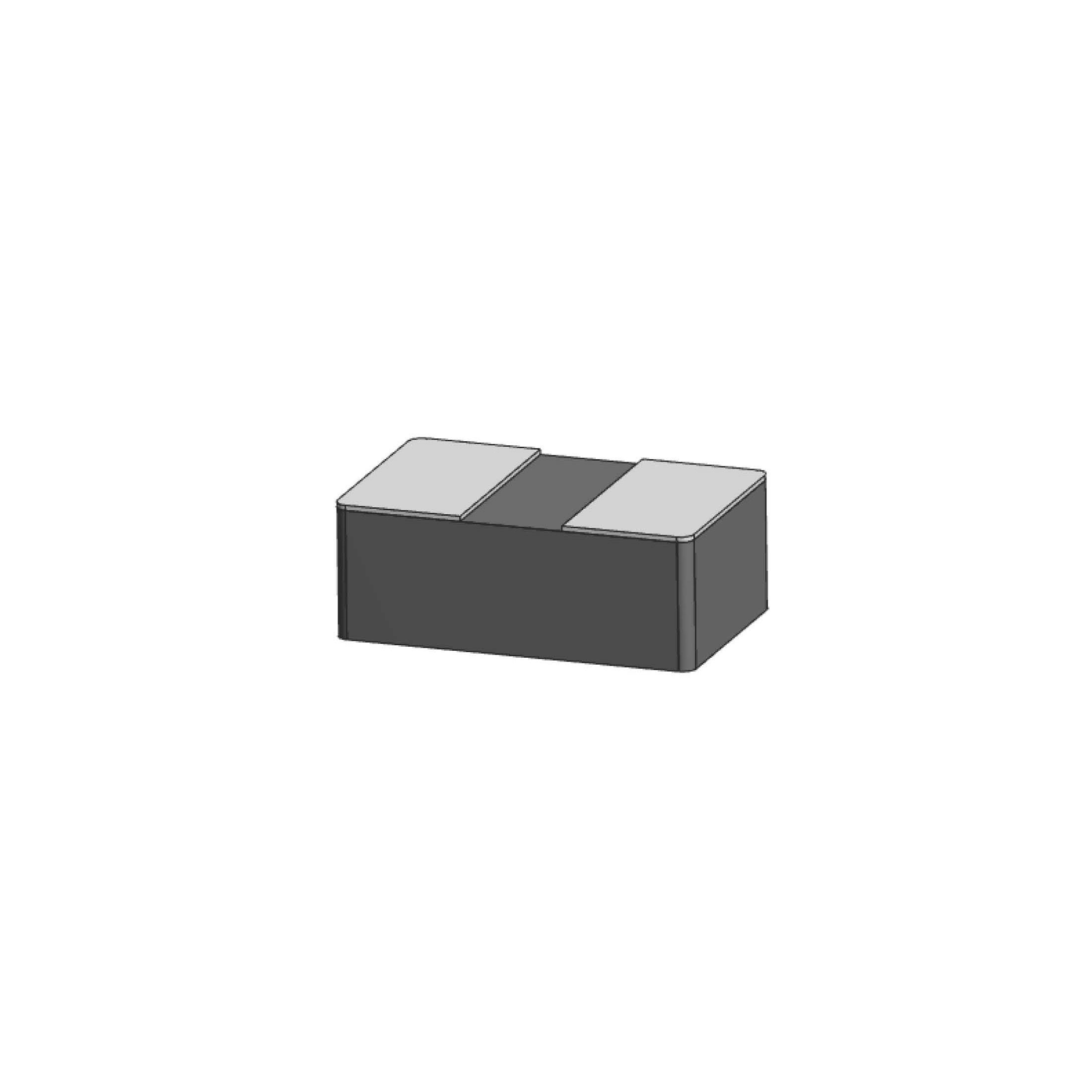

HTEH20121T-R11MSR
ActiveDelta Electronics/Cyntec
IND SMD 0.11UH HOT PRESSED CHOKE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HTEH20121T-R11MSR
ActiveDelta Electronics/Cyntec
IND SMD 0.11UH HOT PRESSED CHOKE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HTEH20121T-R11MSR |
|---|---|
| Current - Saturation (Isat) | 6.8 A |
| Current Rating (Amps) | 5.5 Amps |
| DC Resistance (DCR) | 13 mOhm |
| Height - Seated (Max) [Max] | 0.039 " |
| Height - Seated (Max) [Max] | 1 mm |
| Inductance | 110 nH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Metal |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0805 |
| Shielding | Unshielded |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 0.047 in |
| Size / Dimension [y] | 1.2 mm |
| Supplier Device Package | 0805 |
| Tolerance | 20 % |
| Type | Molded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.31 | |
| 10 | $ 0.25 | |||
| 25 | $ 0.23 | |||
| 50 | $ 0.21 | |||
| 100 | $ 0.19 | |||
| 250 | $ 0.18 | |||
| 500 | $ 0.16 | |||
| 1000 | $ 0.13 | |||
| Digi-Reel® | 1 | $ 0.31 | ||
| 10 | $ 0.25 | |||
| 25 | $ 0.23 | |||
| 50 | $ 0.21 | |||
| 100 | $ 0.19 | |||
| 250 | $ 0.18 | |||
| 500 | $ 0.16 | |||
| 1000 | $ 0.13 | |||
| Tape & Reel (TR) | 3000 | $ 0.12 | ||
| 6000 | $ 0.12 | |||
| 15000 | $ 0.12 | |||
| 30000 | $ 0.11 | |||
| 75000 | $ 0.11 | |||
Description
General part information
HTEH20121T-R11MSR
110 nH Unshielded Molded Inductor 5.5 A 13mOhm Max 0805 (2012 Metric)
