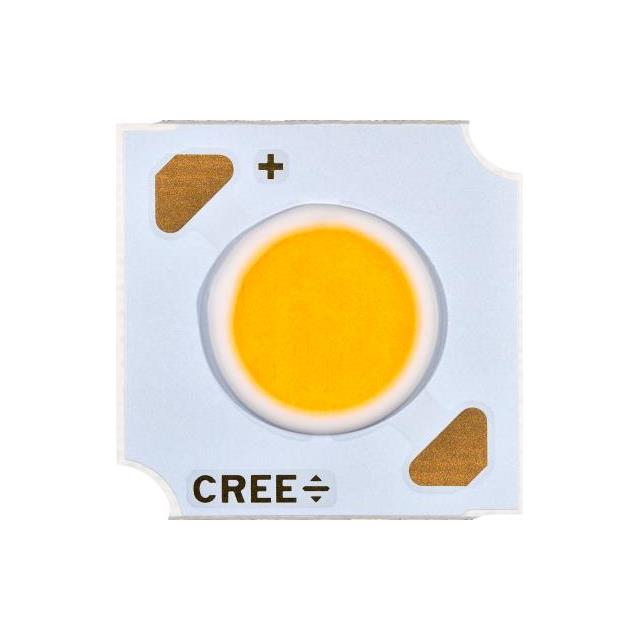

CMB1304-R160-00PF0U0A30Q

Active

Cree LED

XLAMP CMB LED WHITE PRO9

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	160	$ 2.86
		160	$ 2.86

Description

General part information

CMB1304 Series

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CMB1304 White, Warm Square

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CMB1304-R160-00PF0U0A30Q	CMB1304 Series

CCT (K)	-	2200 - 6500 K
CCT (K)	-	5-Step MacAdam Ellipse
Color	White, Warm	White, Warm, Neutral, Cool
Configuration	Square	Square
CRI (Color Rendering Index)	90	70 - 95
Current - Max [Max]	600 mA	1.2 - 600 A
Current - Test	200 mA	100 - 400 mA
Height [z]	1.75 mm	1.75 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	6 mm Dia	6 mm Dia
Lumens/Watt @ Current - Test	-	116 - 184 lm/W
Luminous Flux @ Current/Temperature	-	386 - 616 lm
Size / Dimension [x]	13.35 mm	13.35 mm
Size / Dimension [y]	13.35 mm	13.35 mm
Temperature - Test	85 °C	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	115 °	115 °
Voltage - Forward (Vf) (Typ)	16.7 V	8.3 - 33.6 V

CMB1304 Series

LED COB XLAMP WARM WHT SQU 2700K

...

Part	Current - Max [Max]	Color	Luminous Flux @ Current/Temperature	Temperature - Test	Size / Dimension [y]	Size / Dimension [x]	Light Emitting Surface (LES) [diameter]	Type	Configuration	Viewing Angle	Lumens/Watt @ Current - Test	Current - Test	Height [z]	Lens Type	CRI (Color Rendering Index)	Voltage - Forward (Vf) (Typ)	CCT (K)
Cree LED CMB1304-0000-000C0H0A27H	1.2 A	Warm, White	513 lm	85 °C	13.35 mm	13.35 mm	6 mm Dia	Chip On Board (COB)	Square	115 °	155 lm/W	400 mA	1.75 mm	Flat	80	8.3 V	2700 K
Cree LED CMB1304-0000-000C0B0A40E	1.2 A	Neutral, White	602 lm	85 °C	13.35 mm	13.35 mm	6 mm Dia	Chip On Board (COB)	Square	115 °	181 lm/W	400 mA	1.75 mm	Flat	70	8.3 V	4000 K
Cree LED CMB1304-0000-000F0B0A30E	1.2 A	Warm, White	587 lm	85 °C	13.35 mm	13.35 mm	6 mm Dia	Chip On Board (COB)	Square	115 °	176 lm/W	200 mA	1.75 mm	Flat	70	16.7 V	3000 K
Cree LED CMB1304-0000-000F0H0A40H	1.2 A	Neutral, White	548 lm	85 °C	13.35 mm	13.35 mm	6 mm Dia	Chip On Board (COB)	Square	115 °	164 lm/W	200 mA	1.75 mm	Flat	80	16.7 V	4000 K
Cree LED CMB1304-0000-000F0U0A31Q	1.2 A	Warm, White		85 °C	13.35 mm	13.35 mm	6 mm Dia	Chip On Board (COB)	Square	115 °	133 lm/W	200 mA	1.75 mm	Flat	90	16.7 V	3100 K
Cree LED CMB1304-R160-000N0H0A65G	1.2 A	Cool, White	562 lm	85 °C	13.35 mm	13.35 mm	6 mm Dia	Chip On Board (COB)	Square	115 °		100 mA	1.75 mm	Flat	80	33.6 V	6500 K
Cree LED CMB1304-R160-00PN0U0A35H	300 mA	Warm, White		85 °C	13.35 mm	13.35 mm	6 mm Dia	Chip On Board (COB)	Square	115 °		100 mA	1.75 mm	Flat	90	33.6 V	3500 K
Cree LED CMB1304-R160-000C0U0A57G	1.2 A	Cool, White	503 lm	85 °C	13.35 mm	13.35 mm	6 mm Dia	Chip On Board (COB)	Square	115 °	152 lm/W	400 mA	1.75 mm	Flat	90	8.3 V	5700 K
Cree LED CMB1304-R160-000N0U0A30U	1.2 A	Warm, White	436 lm	85 °C	13.35 mm	13.35 mm	6 mm Dia	Chip On Board (COB)	Square	115 °	130 lm/W	100 mA	1.75 mm	Flat	90	33.6 V	3000 K
Cree LED CMB1304-R160-00PC0U0A31Q	1.2 A	Warm, White		85 °C	13.35 mm	13.35 mm	6 mm Dia	Chip On Board (COB)	Square	115 °		400 mA	1.75 mm	Flat	90	8.3 V	3100 K
