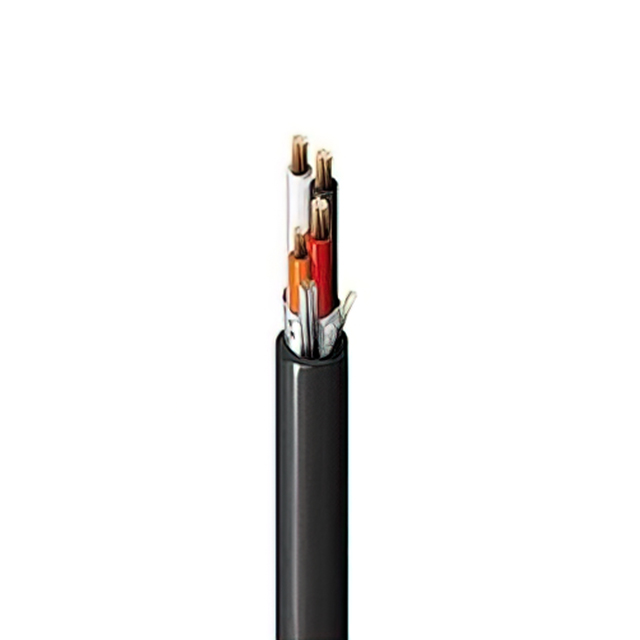

1083A 01010000

Active

Belden Inc.

CABLE 13COND 20AWG/22AWG

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 13COND 20AWG/22AWG

Technical Specifications

Parameters and characteristics for this part

Specification	1083A 01010000

Cable Type	Multi-Triad
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand	30, 7 Strands, 28 AWG (2)
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	0.482 in
Jacket (Insulation) Diameter [diameter]	12.24 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.346 mm
Jacket (Insulation) Thickness	0.053 in
Jacket Color	Black
Length	3048 m
Length [x]	10000 ft
Number of Conductors	13
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	22, 20

CABLE 13COND 20AWG/22AWG

Part	Features	Voltage	Length	Length [x]	Conductor Material	Shield Material	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand	Ratings	Jacket (Insulation) Material	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Shield Type	Cable Type	Number of Conductors	Shield Coverage	Conductor Insulation
Belden Inc. 1083A 01010000	Drain Wire, Rip Cord	300 V	3048 m	10000 ft	Copper, Bare	Aluminum	-30 ░C	105 ░C	0.482 in	12.24 mm	7 Strands, 28 AWG (2), 30	UL Style 2464	Poly-Vinyl Chloride (PVC)	Black	1.346 mm	0.053 in	20, 22	Foil	Multi-Triad	13	100 %	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	10000	$ 3.99

General part information

13 (4 Triad) Conductor Multi-Triad Cable Black 20 AWG, 22 AWG Foil 10000' (3048.0m)
