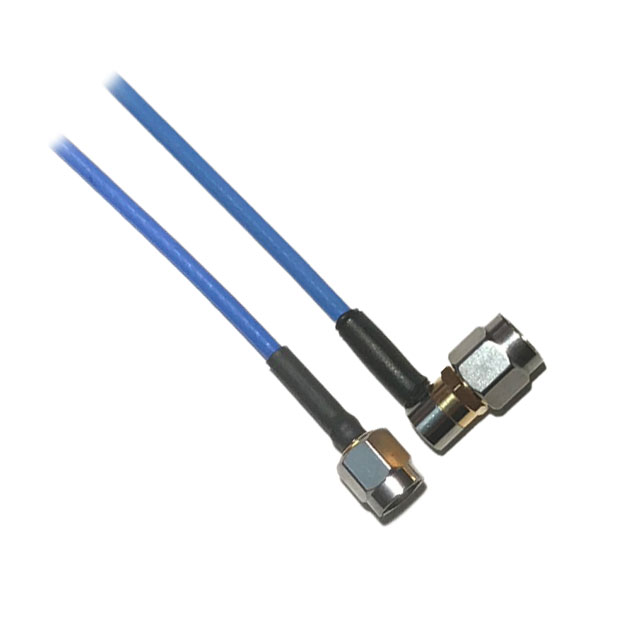

LSA29-S1S2-S18

Active

ConductRF

CBL ASSY SMA PLUG TO PLUG 18"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LSA29-S1S2-S18

Active

ConductRF

CBL ASSY SMA PLUG TO PLUG 18"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 58.56
		5	$ 55.11
		10	$ 52.05
		25	$ 46.84
		50	$ 42.59
		100	$ 40.73
		250	$ 39.04
		500	$ 37.47
		1000	$ 36.04

Description

General part information

LSA29 Series

Cable Assembly Coaxial SMA to SMA 3.58mm OD Coaxial Cable 18.00" (457.20mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LSA29-S1S2-S18	LSA29 Series

1st Connector	SMA Plug	SMA Plug, Right Angle, N-Type Jack, N-Type Plug, SMA Jack
1st Connector Mounting Feature	-	Bulkhead - Front Side Nut
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Panel Mount
1st Contact Gender	Male	Male, Female
2nd Connector	SMA Plug, Right Angle	SMA Plug, Right Angle, SMA Plug, N-Type Plug, N-Type Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Male	Male
Cable Type	3.58mm OD Coaxial Cable	3.58mm OD Coaxial Cable
Color	Blue	Blue
Connector Impedance	50 Ohms	50 Ohms
Features	Shielded	Shielded
Frequency - Max [Max]	18 GHz	18 GHz
Length	-	5 - 48 "
Length	-	1.5 - 1200 mm
Length	-	4 - 5 ft
Length	-	16 in
Length [x]	457.2 mm	457.2 mm
Length [x]	457.2 mm	406.4 - 457.2 mm
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Impedance	50 Ohms	50 Ohms
Style	SMA to SMA	SMA to SMA, N-Type to N-Type, SMA to N-Type

LSA29 Series

CBL ASSY SMA PLUG TO PLUG 24"

Part	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]	1st Connector Mounting Type	Connector Impedance	Color	2nd Connector Mounting Type	2nd Contact Gender	Style	Features	1st Connector	Frequency - Max [Max]	1st Contact Gender	Cable Type	2nd Connector	Overall Impedance	1st Connector Mounting Feature	Length [x]	Length [x]	Length
ConductRF LSA29-S2S2-S24	24 "	609.6 mm	-55 °C	125 °C	Free Hanging (In-Line)	50 Ohms	Blue	Free Hanging (In-Line)	Male	SMA to SMA	Shielded	Right Angle, SMA Plug	18 GHz	Male	3.58mm OD Coaxial Cable	SMA Plug, Right Angle	50 Ohms
ConductRF LSA29-S1S1-S36	36 in	91.44 cm	-55 °C	125 °C	Free Hanging (In-Line)	50 Ohms	Blue	Free Hanging (In-Line)	Male	SMA to SMA	Shielded	SMA Plug	18 GHz	Male	3.58mm OD Coaxial Cable	SMA Plug	50 Ohms
ConductRF LSA29-S1S1-S24	24 "	609.6 mm	-55 °C	125 °C	Free Hanging (In-Line)	50 Ohms	Blue	Free Hanging (In-Line)	Male	SMA to SMA	Shielded	SMA Plug	18 GHz	Male	3.58mm OD Coaxial Cable	SMA Plug	50 Ohms
ConductRF LSA29-N1N3-S18			-55 °C	125 °C	Panel Mount	50 Ohms	Blue	Free Hanging (In-Line)	Male	N-Type to N-Type	Shielded	N-Type Jack	18 GHz	Female	3.58mm OD Coaxial Cable	N-Type Plug	50 Ohms	Bulkhead - Front Side Nut	457.2 mm	457.2 mm
ConductRF LSA29-S2S2-S12	12 "	304.8 mm	-55 °C	125 °C	Free Hanging (In-Line)	50 Ohms	Blue	Free Hanging (In-Line)	Male	SMA to SMA	Shielded	Right Angle, SMA Plug	18 GHz	Male	3.58mm OD Coaxial Cable	SMA Plug, Right Angle	50 Ohms
ConductRF LSA29-N1S1-S24	24 "	609.6 mm	-55 °C	125 °C	Free Hanging (In-Line)	50 Ohms	Blue	Free Hanging (In-Line)	Male	SMA to N-Type	Shielded	SMA Plug	18 GHz	Male	3.58mm OD Coaxial Cable	N-Type Plug	50 Ohms
ConductRF LSA29-S1S2-S24	24 "	609.6 mm	-55 °C	125 °C	Free Hanging (In-Line)	50 Ohms	Blue	Free Hanging (In-Line)	Male	SMA to SMA	Shielded	SMA Plug	18 GHz	Male	3.58mm OD Coaxial Cable	SMA Plug, Right Angle	50 Ohms
ConductRF LSA29-S1S1-S18			-55 °C	125 °C	Free Hanging (In-Line)	50 Ohms	Blue	Free Hanging (In-Line)	Male	SMA to SMA	Shielded	SMA Plug	18 GHz	Male	3.58mm OD Coaxial Cable	SMA Plug	50 Ohms		457.2 mm	457.2 mm
ConductRF LSA29-N1N1-S60	5 '	1.5 m	-55 °C	125 °C	Free Hanging (In-Line)	50 Ohms	Blue	Free Hanging (In-Line)	Male	N-Type to N-Type	Shielded		18 GHz	Male	3.58mm OD Coaxial Cable	N-Type Plug	50 Ohms				5 ft
ConductRF LSA29-N1N3-S12	12 "	304.8 mm	-55 °C	125 °C	Panel Mount	50 Ohms	Blue	Free Hanging (In-Line)	Male	N-Type to N-Type	Shielded	N-Type Jack	18 GHz	Female	3.58mm OD Coaxial Cable	N-Type Plug	50 Ohms	Bulkhead - Front Side Nut
