HCLC-10-14.3
ActiveSignal Transformer
TOR IND LOW CORE LOSS 10UH 14.3A
HCLC-10-14.3
ActiveSignal Transformer
TOR IND LOW CORE LOSS 10UH 14.3A
Description
General part information
HCLC-10-14.3

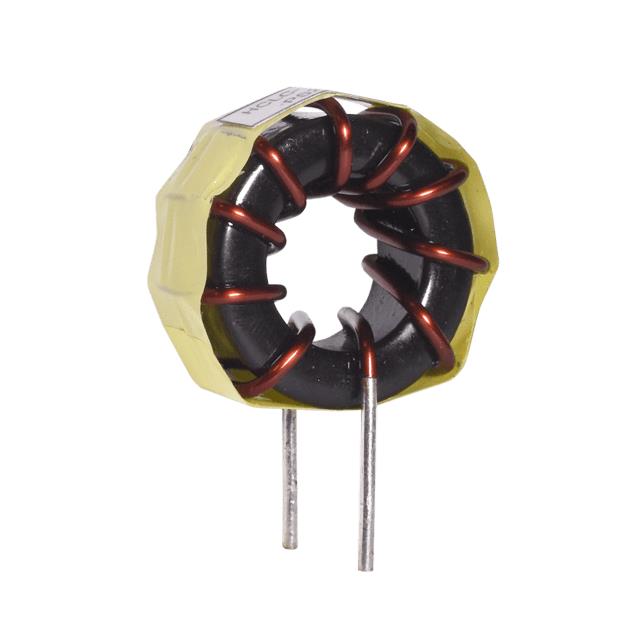

10 µH Shielded Toroidal Inductor 14.3 A 6mOhm Max Vertical, No Base, 2 PC Pin
Technical Specifications
Parameters and characteristics for this part
| Specification | HCLC-10-14.3 |
|---|---|
| Current Rating | 14.3 A |
| DC Resistance (DCR) (Max) | 6 mOhm |
| Inductance | 10 µH |
| Inductance Frequency - Test | 1 kHz |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2 PC Pin, No Base, Vertical |
| Package Name | Vertical, No Base |
| Pad Count | 2 PC Pin |
| Shielding | Shielded |
| Size / Dimension Diameter | 1.1 in |
| Size / Dimension Width | 0.55 in |
| Tolerance | 15 % |
| Type | Toroidal |
