Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2770891 | UKK Series |
|---|---|---|
| Color | Gray | Gray |
| Current - IEC | - | 32 A |
| Current - UL | - | 30 A |
| Features | - | Diode |
| For Use With/Related Products | CLIPLINE UKK Series | CLIPLINE UKK Series |
| Material - Insulation | - | Nylon, Polyamide (PA) |
| Material Flammability Rating | - | UL94 V-0 |
| Number of Levels | - | 2 |
| Number of Levels | - | Connected |
| Number of Positions | - | 4 |
| Stripping Length | - | 8 mm |
| Terminal - Width | - | 6.2 mm |
| Termination Style | - | Screw |
| Type | End Plate, Rail Type | Feed Through, End Plate, Rail Type |
| Voltage - IEC | - | 500 V |
| Voltage - UL | - | 600 V |
| Wire Gauge or Range - AWG | - | 26 AWG |
| Wire Gauge or Range - AWG | - | 10 AWG |
| Wire Gauge or Range - mm² | - | 0.2 mm² |
| Wire Gauge or Range - mm² | - | 4 mm² |
UKK Series
Terminal Block Tools & Accessories D-UKK 3-MSTB-5 08
| Part | Current - IEC | Material Flammability Rating | Color | Voltage - IEC | Terminal - Width [y] | Current - UL | Number of Positions | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Number of Levels | Number of Levels | Material - Insulation | Type | Voltage - UL | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - mm² [Max] | Features | Termination Style | Stripping Length | For Use With/Related Products |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2791032 | 32 A | UL94 V-0 | Gray | 500 V | 6.2 mm | 30 A | 4 | 26 AWG | 10 AWG | 2 | Connected | Nylon, Polyamide (PA) | Feed Through | 600 V | 0.2 mm² | 4 mm² | Diode | Screw | 8 mm | |

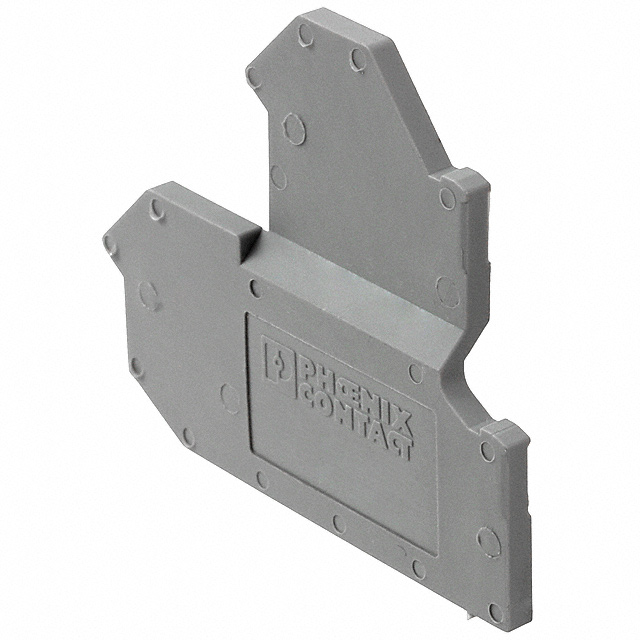

Phoenix Contact 2770891 | Gray | End Plate, Rail Type | CLIPLINE UKK Series |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
UKK Series
Terminal Block Tools & Accessories D-UKK 3-MSTB-5 08
