BGHSTT19

Active

Panduit Corp

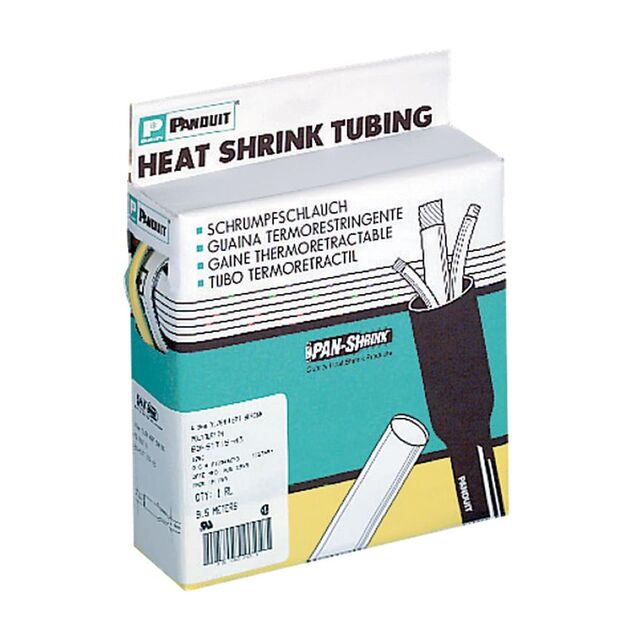

HEAT-SHRINK TUBING, 2:1, 4.8MM, BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BGHSTT19

Active

Panduit Corp

HEAT-SHRINK TUBING, 2:1, 4.8MM, BLACK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BGHSTT19	BGHSTT Series

Color	Black	Black, Red, Clear, Green, Yellow, Blue
Inner Diameter - Recovered	2.36 mm	2.36 - 3.18 mm
Inner Diameter - Recovered	0.093 in	0.093 in
Inner Diameter - Recovered	-	0.062 - 0.5 in
Inner Diameter - Recovered	-	1.57 - 12.7 mm
Inner Diameter - Supplied [diameter]	4.75 mm	3.18 - 25.4 mm
Inner Diameter - Supplied [diameter]	0.187 in	0.125 - 1 in
Length	3.2 m	3.2 - 8.5 m
Length	10.5 ft	10.5 - 27.9 ft
Length	-	12.5 - 19.7 ft
Length	-	3.8 - 6 m
Material	Polyolefin (PO), Irradiated	Polyolefin (PO), Irradiated, Polyolefin (PO)
Operating Temperature [Max]	135 °C	135 °C
Operating Temperature [Min]	-55 °C	-55 °C
Recovered Wall Thickness	0.02 in	0.02 - 0.035 in
Recovered Wall Thickness	0.51 mm	0.51 - 0.89 mm
Recovered Wall Thickness	-	0.025 "
Recovered Wall Thickness	-	0.64 mm
Recovered Wall Thickness	-	0.03 "
Shrink Temperature	90 °C	90 °C
Shrinkage Ratio	2 to 1	2 to 1
Type	Tubing, Flexible	Tubing, Flexible

BGHSTT Series

HEAT SHRINK 1" X 4.3M BLACK

Part	Color	Recovered Wall Thickness	Recovered Wall Thickness	Shrink Temperature	Operating Temperature [Max]	Operating Temperature [Min]	Shrinkage Ratio	Length	Length	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Type	Material	Recovered Wall Thickness [custom]	Recovered Wall Thickness [custom]	Inner Diameter - Recovered	Inner Diameter - Recovered	Length [x]	Length [x]
Panduit Corp BGHSTT100	Black	0.89 mm	0.035 in	90 °C	135 °C	-55 °C	2 to 1	14.1 ft	4.3 m	0.5 in	12.7 mm	1 in	25.4 mm	Tubing, Flexible	Polyolefin (PO), Irradiated
Panduit Corp BGHSTT50-2	Red			90 °C	135 °C	-55 °C	2 to 1	24.6 ft	7.5 m	0.25 in	6.35 mm	0.5 in	12.7 mm	Tubing, Flexible	Polyolefin (PO), Irradiated	0.025 "	0.64 mm
Panduit Corp BGHSTT38-C	Clear			90 °C	135 °C	-55 °C	2 to 1	24.6 ft	7.5 m	0.187 in	4.75 mm	0.375 in	9.53 mm	Tubing, Flexible	Polyolefin (PO), Irradiated	0.025 "	0.64 mm
Panduit Corp BGHSTT19-2	Red	0.51 mm	0.02 in	90 °C	135 °C	-55 °C	2 to 1	10.5 ft	3.2 m			0.187 in	4.75 mm	Tubing, Flexible	Polyolefin (PO), Irradiated			2.36 mm	0.093 in
Panduit Corp BGHSTT19-C	Clear	0.51 mm	0.02 in	90 °C	135 °C	-55 °C	2 to 1	10.5 ft	3.2 m			0.187 in	4.75 mm	Tubing, Flexible	Polyolefin (PO), Irradiated			2.36 mm	0.093 in
Panduit Corp BGHSTT100-C	Clear	0.89 mm	0.035 in	90 °C	135 °C	-55 °C	2 to 1	14.1 ft	4.3 m	0.5 in	12.7 mm	1 in	25.4 mm	Tubing, Flexible	Polyolefin (PO), Irradiated
Panduit Corp BGHSTT50-C	Clear			90 °C	135 °C	-55 °C	2 to 1	24.6 ft	7.5 m	0.25 in	6.35 mm	0.5 in	12.7 mm	Tubing, Flexible	Polyolefin (PO), Irradiated	0.025 "	0.64 mm
Panduit Corp BGHSTT12-45	Green, Yellow	0.51 mm	0.02 in	90 °C	135 °C	-55 °C	2 to 1			0.062 in	1.57 mm	0.125 "	3.18 mm	Tubing, Flexible	Polyolefin (PO)					12.5 ft	3.8 m
Panduit Corp BGHSTT12-2	Red	0.51 mm	0.02 in	90 °C	135 °C	-55 °C	2 to 1			0.062 in	1.57 mm	0.125 "	3.18 mm	Tubing, Flexible	Polyolefin (PO)					12.5 ft	3.8 m
Panduit Corp BGHSTT25-2	Red			90 °C	135 °C	-55 °C	2 to 1	27.9 ft	8.5 m	0.125 in		0.25 in	6.35 mm	Tubing, Flexible	Polyolefin (PO), Irradiated	0.025 "	0.64 mm	3.18 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Newark	Each	1	$ 29.32
		5	$ 27.78
		10	$ 26.39
		25	$ 25.16
		50	$ 23.92
		100	$ 22.84

Description

General part information

BGHSTT Series

Heat Shrink Tubing, Flexible 0.187" (4.75mm) 2 to 1 Black 10.5' (3.2m)
