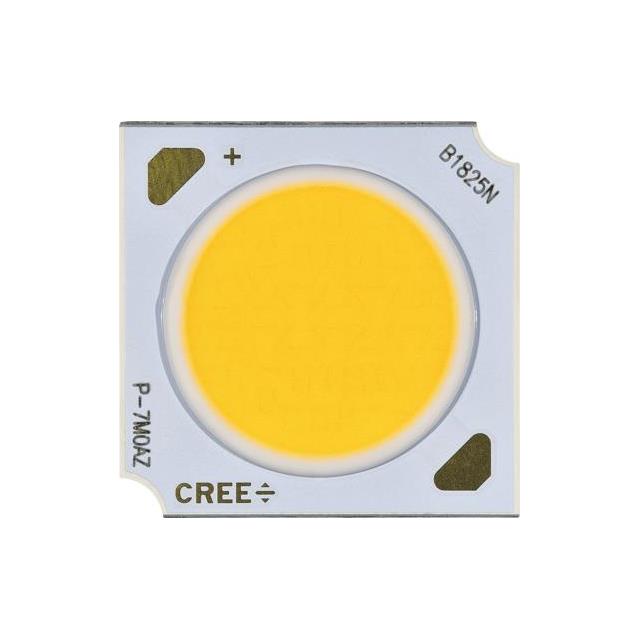

CMB1825-R096-00PN0Z0A40H

Active

Cree LED

XLAMP CMB LED WHITE PRO9

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CMB1825-R096-00PN0Z0A40H

Active

Cree LED

XLAMP CMB LED WHITE PRO9

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	96	$ 10.98

Description

General part information

CMB1825 Series

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CMB1825 White, Neutral Square

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CMB1825-R096-00PN0Z0A40H	CMB1825 Series

CCT (K)	4000 K	2700 - 6500 K
CCT (K)	-	5-Step MacAdam Ellipse
Color	Neutral, White	White, Warm, Neutral, Cool
Configuration	Square	Square
CRI (Color Rendering Index)	95	70 - 95
Current - Max [Max]	1.8 A	1.8 A
Height [z]	1.75 mm	1.75 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	12 mm	12 mm
Lumens/Watt @ Current - Test	-	111 - 174 lm/W
Luminous Flux @ Current/Temperature	-	2638 - 4151 lm
Size / Dimension [x]	17.85 mm	17.85 mm
Size / Dimension [y]	17.85 mm	17.85 mm
Temperature - Test	85 °C	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	115 °	115 °
Voltage - Forward (Vf) (Typ)	34 V	34 V

CMB1825 Series

LED UNI-COLOR WHITE 2-PIN COB TRAY

Part	CRI (Color Rendering Index)	Type	Configuration	Current - Max [Max]	Voltage - Forward (Vf) (Typ)	CCT (K)	Light Emitting Surface (LES) [diameter]	Size / Dimension [y]	Size / Dimension [x]	Lens Type	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test	Color	Temperature - Test	Viewing Angle	Height [z]
Cree LED CMB1825-R096-000N0H0A30G	80	Chip On Board (COB)	Square	1.8 A	34 V	3000 K	12 mm	17.85 mm	17.85 mm	Flat	3636 lm	153 lm/W	Warm, White	85 °C	115 °	1.75 mm
Cree LED CMB1825-R096-000N0U0A40H	90	Chip On Board (COB)	Square	1.8 A	34 V	4000 K	12 mm	17.85 mm	17.85 mm	Flat	3208 lm	135 lm/W	Neutral, White	85 °C	115 °	1.75 mm
Cree LED CMB1825-R096-00PN0U0A50G	90	Chip On Board (COB)	Square	1.8 A	34 V	5000 K	12 mm	17.85 mm	17.85 mm	Flat			Cool, White	85 °C	115 °	1.75 mm
Cree LED CMB1825-R096-00PN0Z0A35H	95	Chip On Board (COB)	Square	1.8 A	34 V	3500 K	12 mm	17.85 mm	17.85 mm	Flat			Warm, White	85 °C	115 °	1.75 mm
Cree LED CMB1825-0000-000N0U0A57G	90	Chip On Board (COB)	Square	1.8 A	34 V	5700 K	12 mm	17.85 mm	17.85 mm	Flat	3283 lm	138 lm/W	Cool, White	85 °C	115 °	1.75 mm
Cree LED CMB1825-R096-00PN0U0A40G	90	Chip On Board (COB)	Square	1.8 A	34 V	4000 K	12 mm	17.85 mm	17.85 mm	Flat			Neutral, White	85 °C	115 °	1.75 mm
Cree LED CMB1825-R096-00PN0U0A31Q	90	Chip On Board (COB)	Square	1.8 A	34 V	3100 K	12 mm	17.85 mm	17.85 mm	Flat			Warm, White	85 °C	115 °	1.75 mm
Cree LED CMB1825-R096-00PN0U0A35G	90	Chip On Board (COB)	Square	1.8 A	34 V	3500 K	12 mm	17.85 mm	17.85 mm	Flat			Warm, White	85 °C	115 °	1.75 mm
Cree LED CMB1825-R096-00PN0Z0AL7C	95	Chip On Board (COB)	Square	1.8 A	34 V		12 mm	17.85 mm	17.85 mm	Flat				85 °C	115 °	1.75 mm
Cree LED CMB1825-0000-000N0U0A40G	90	Chip On Board (COB)	Square	1.8 A	34 V	4000 K	12 mm	17.85 mm	17.85 mm	Flat	3208 lm	135 lm/W	Neutral, White	85 °C	115 °	1.75 mm
