DMN15M3UCA6-7
ActiveDiodes Inc
TRANSISTOR MOSFET ARRAY DUAL N-CHANNEL 14V 16.5A 6-PIN DSN 2718 T/R
Deep-Dive with AI
Search across all available documentation for this part.
DMN15M3UCA6-7
ActiveDiodes Inc
TRANSISTOR MOSFET ARRAY DUAL N-CHANNEL 14V 16.5A 6-PIN DSN 2718 T/R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DMN15M3UCA6-7 |
|---|---|
| Configuration | 2 N-Channel (Dual) Common Source |
| Current - Continuous Drain (Id) @ 25°C | 16.5 A |
| Drain to Source Voltage (Vdss) | 14 V |
| Gate Charge (Qg) (Max) @ Vgs [Max] | 35.2 nC |
| Input Capacitance (Ciss) (Max) @ Vds [Max] | 2360 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 6-SMD, No Lead |
| Power - Max [Max] | 1 W |
| Rds On (Max) @ Id, Vgs | 5.8 mOhm |

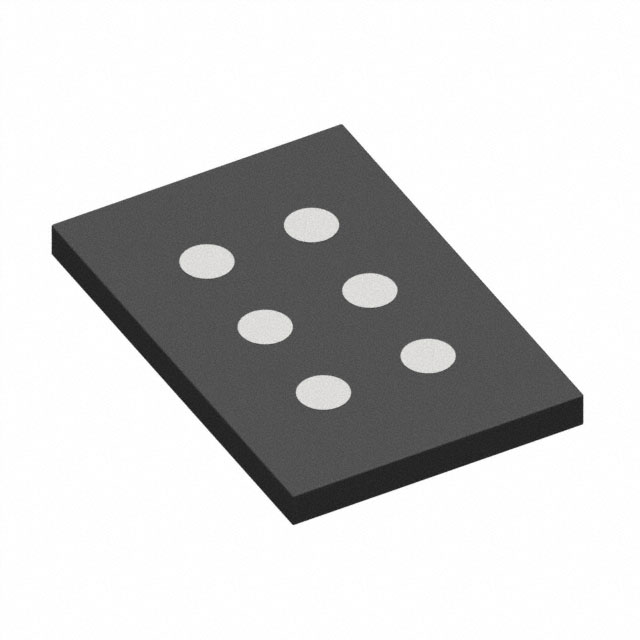

| Supplier Device Package | X3-DSN2718-6 |
| Vgs(th) (Max) @ Id | 1.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
DMN15M3UCA6 Series
This new generation MOSFET is designed to minimize the on-state resistance (RSS(ON)) yet maintain superior switching performance, which makes it ideal for high-efficiency power management applications.
