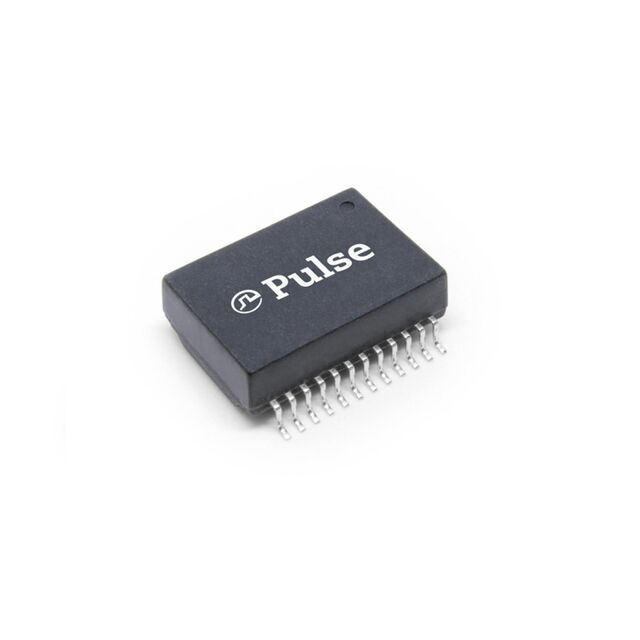

HB5G009HLT
ActivePulse Electronics
MOD SIN 5GD 1:1 HF SMD
HB5G009HLT
ActivePulse Electronics
MOD SIN 5GD 1:1 HF SMD
Description
General part information
HB5G009HLT
180µH LAN 5G Base-T Pulse Transformer 1CT:1CT Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | HB5G009HLT |
|---|---|
| Height - Seated (Max) | 0.236 in |
| Inductance | 180 µH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Size / Dimension Length | 0.691 in |
| Size / Dimension Width | 0.48 in |
| Transformer Type | LAN 5G Base-T |
| Turns Ratio - Primary | 1 |
| Turns Ratio - Secondary | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
