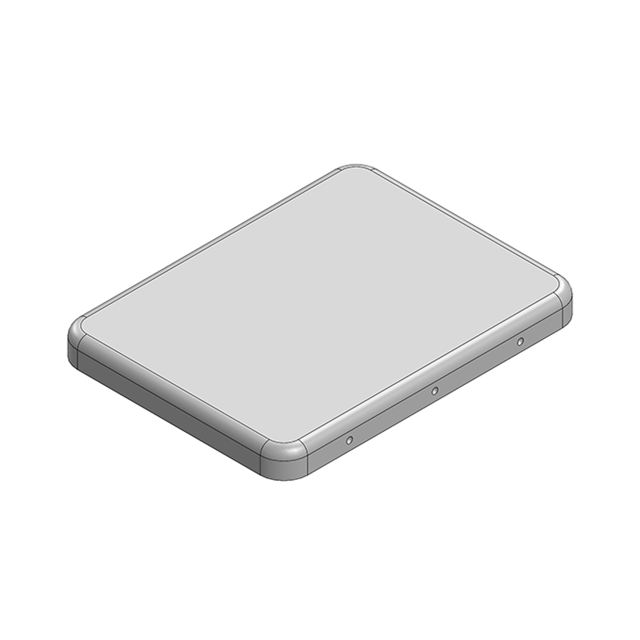

MS226-10C
ActiveMasach Tech Ltd.
RF SHIELD 0.689X0.906" SNAP FIT
Deep-Dive with AI
Search across all available documentation for this part.
MS226-10C
ActiveMasach Tech Ltd.
RF SHIELD 0.689X0.906" SNAP FIT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MS226-10C |
|---|---|
| Height - Overall [z] | 0.079 in |
| Height - Overall [z] | 2 mm |
| Length - Overall [x] | 0.906 in |
| Length - Overall [x] | 23 mm |
| Mounting Type | Snap Fit |
| Type | Cover |
| Ventilation | Non-Vented |
| Width - Overall [y] | 17.5 mm |
| Width - Overall [y] | 0.689 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.00 | |
| 10 | $ 1.24 | |||
| 25 | $ 1.04 | |||
| 90 | $ 0.84 | |||
| 270 | $ 0.70 | |||
| 450 | $ 0.65 | |||
| 990 | $ 0.59 | |||
| 2430 | $ 0.53 | |||
| 4950 | $ 0.49 | |||
Description
General part information
MS226 Series
RF Shield Cover 0.689" (17.50mm) X 0.906" (23.00mm) Non-Vented Snap Fit
