EM-SGL-NPT34-MET-B

Active

TE Connectivity Raychem Cable Protection

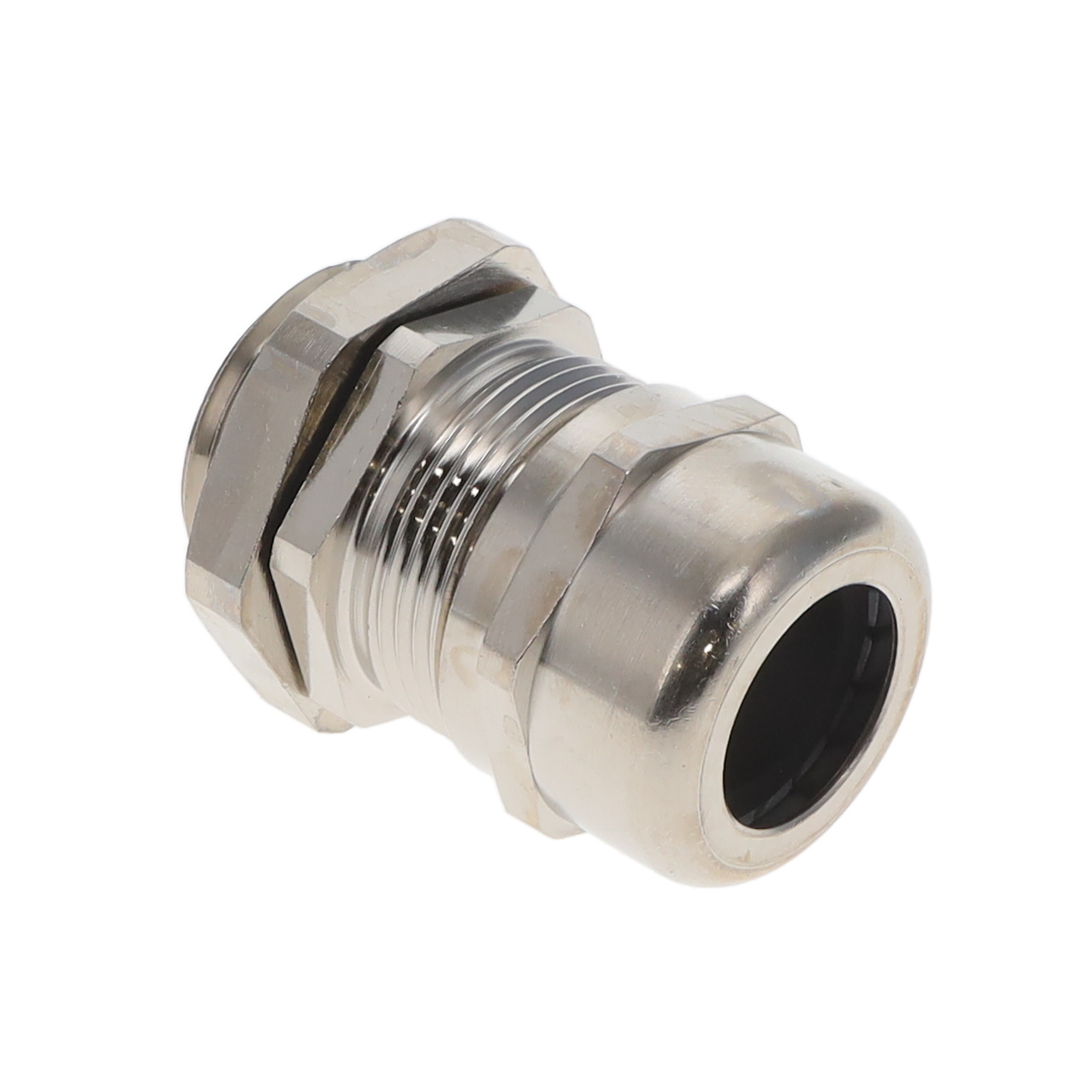

CABLE GLAND 13-18.01MM 3/4" NPT

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CABLE GLAND 13-18.01MM 3/4" NPT

Technical Specifications

Parameters and characteristics for this part

Specification	EM-SGL-NPT34-MET-B

Color	Silver
Includes	Locknut, Seal
Ingress Protection	IP68 - Dust Tight, Waterproof
Material	Brass, Nickel Plated
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Outside Cable Diameter (Max) [Max] [diameter]	0.709 in
Outside Cable Diameter (Max) [Max] [diameter]	18.01 mm
Outside Cable Diameter (Min)	13 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.512 in
Thread Length	13 mm
Thread Length	0.512 in
Thread Size	3/4 NPT
Type	Cable Gland

Part	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min)	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Color	Type	Includes	Ingress Protection	Material	Thread Size	Thread Length	Thread Length
TE Connectivity Raychem Cable Protection EM-SGL-NPT34-MET-B	0.512 in	13 mm	100 °C	-20 C	0.709 in	18.01 mm	Silver	Cable Gland	Locknut Seal	IP68 - Dust Tight Waterproof	Brass Nickel Plated	3/4 NPT	13 mm	0.512 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated 3/4" NPT Silver
