Description
General part information

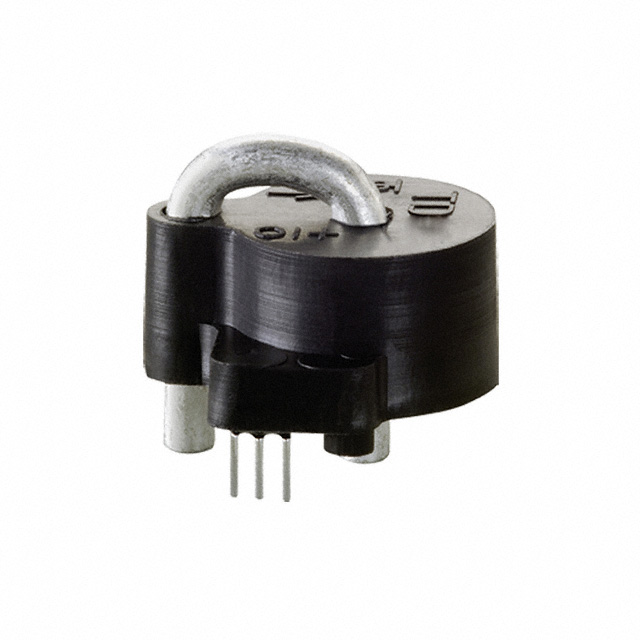

TD-090
Current Sensor 90A 1 Channel Current Switch Unidirectional Module
Technical Specifications
Parameters and characteristics for this part
| Specification | TD-090 |
|---|---|
| Current - Sensing | 90 A |
| Current - Supply (Max) | 10 mA |
| For Measuring | DC |
| Mounting Type | Through Hole |
| Number of Channels | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Output | Open Collector |
| Package / Case | Module |
| Polarization | Unidirectional |
| Response Time | 1 µs |
| Sensor Type | Current Switch |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 3.8 V |
